Experience the latest in durable electronics to match your environment.
JENSEN Heavy Duty

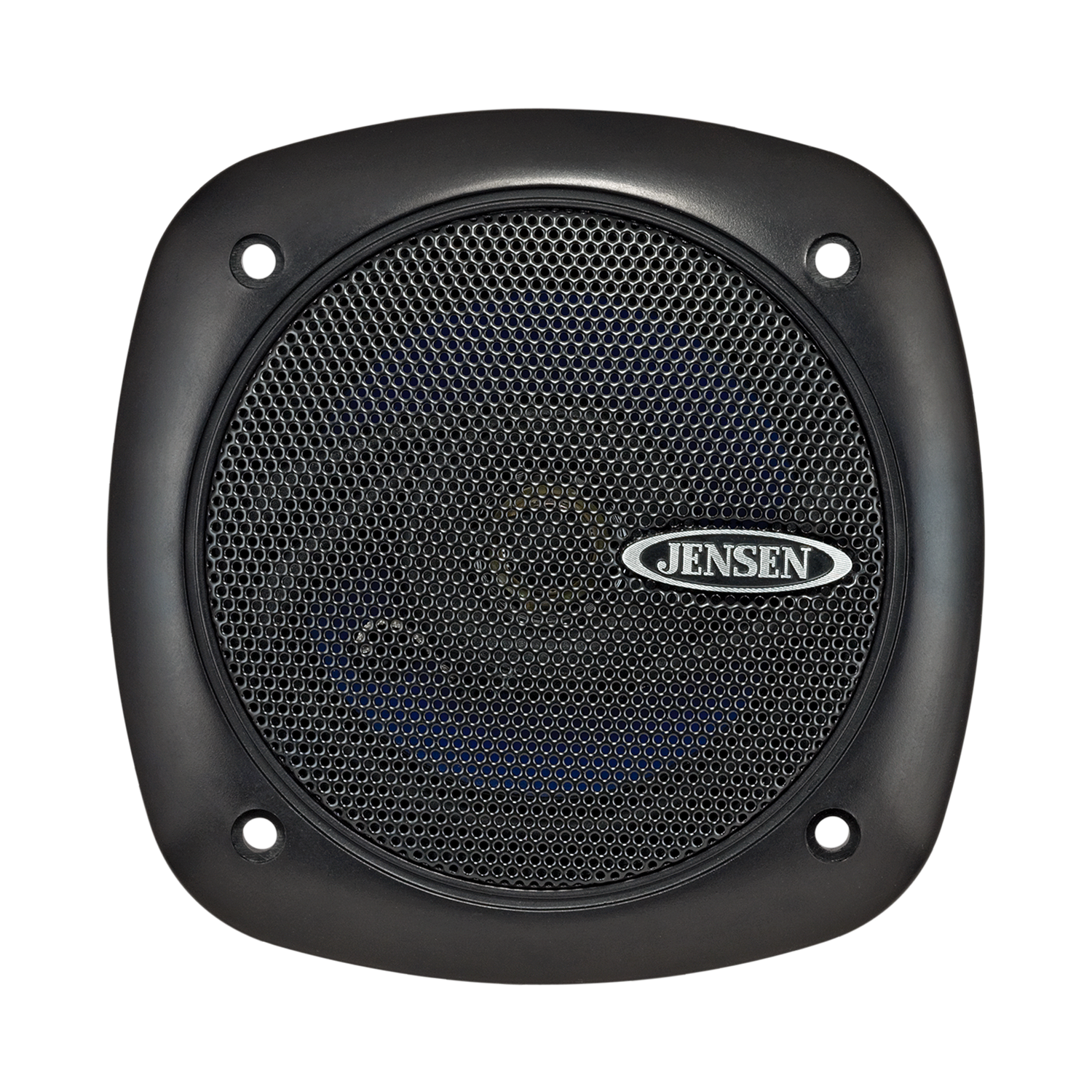

Compact Heavy Duty Sealed Speaker
SWJXHD40
This speaker balances crisp, clear sound and power efficiency. It features a polypropylene woofer with a 4.3-oz magnet, which delivers robust bass response, while its dome tweeter ensures crisp highs across a wide frequency range.

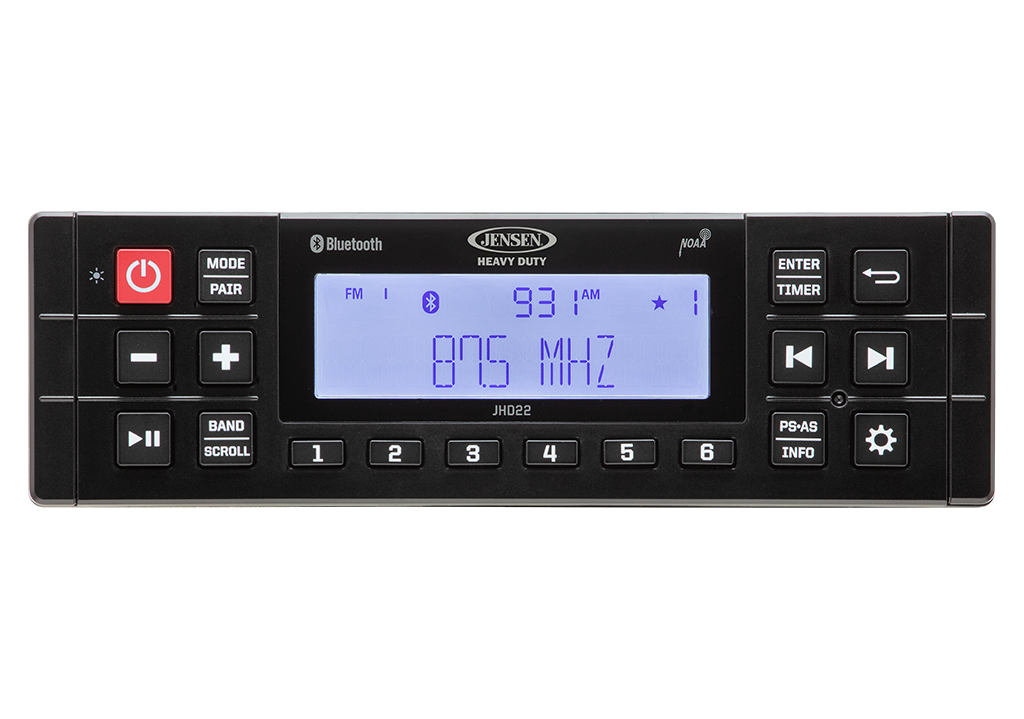

Bluetooth® and Weatherband Stereo
SWJHD22
This stereo combines functionality with convenience, featuring Bluetooth streaming and a rear USB port for charging. The built-in Weatherband provides real-time weather updates, keeping you informed on the go. Its water and UV-resistant front panel ensures durability, making it a versatile companion.

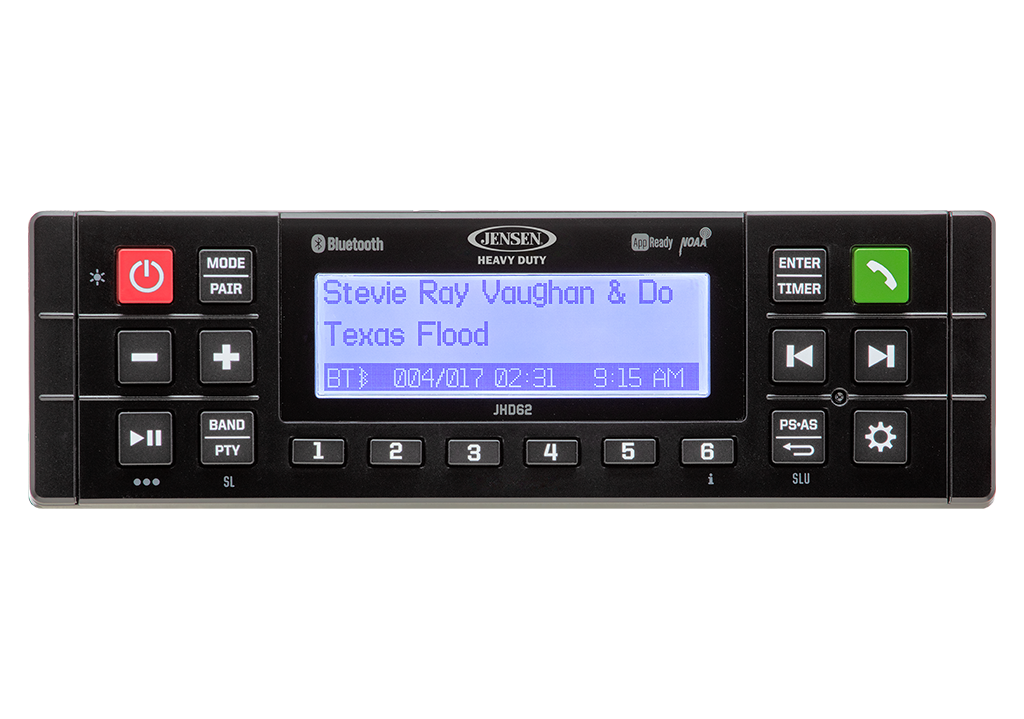

Bluetooth® Stereo with DAB+
SWJHD62
Ensure durability and stellar performance with our rugged stereo, which offers hands-free calling and crystal-clear digital broadcasting. The CAN Bus capability enhances connectivity, making it the ultimate choice for a modern, feature-rich audio solution.

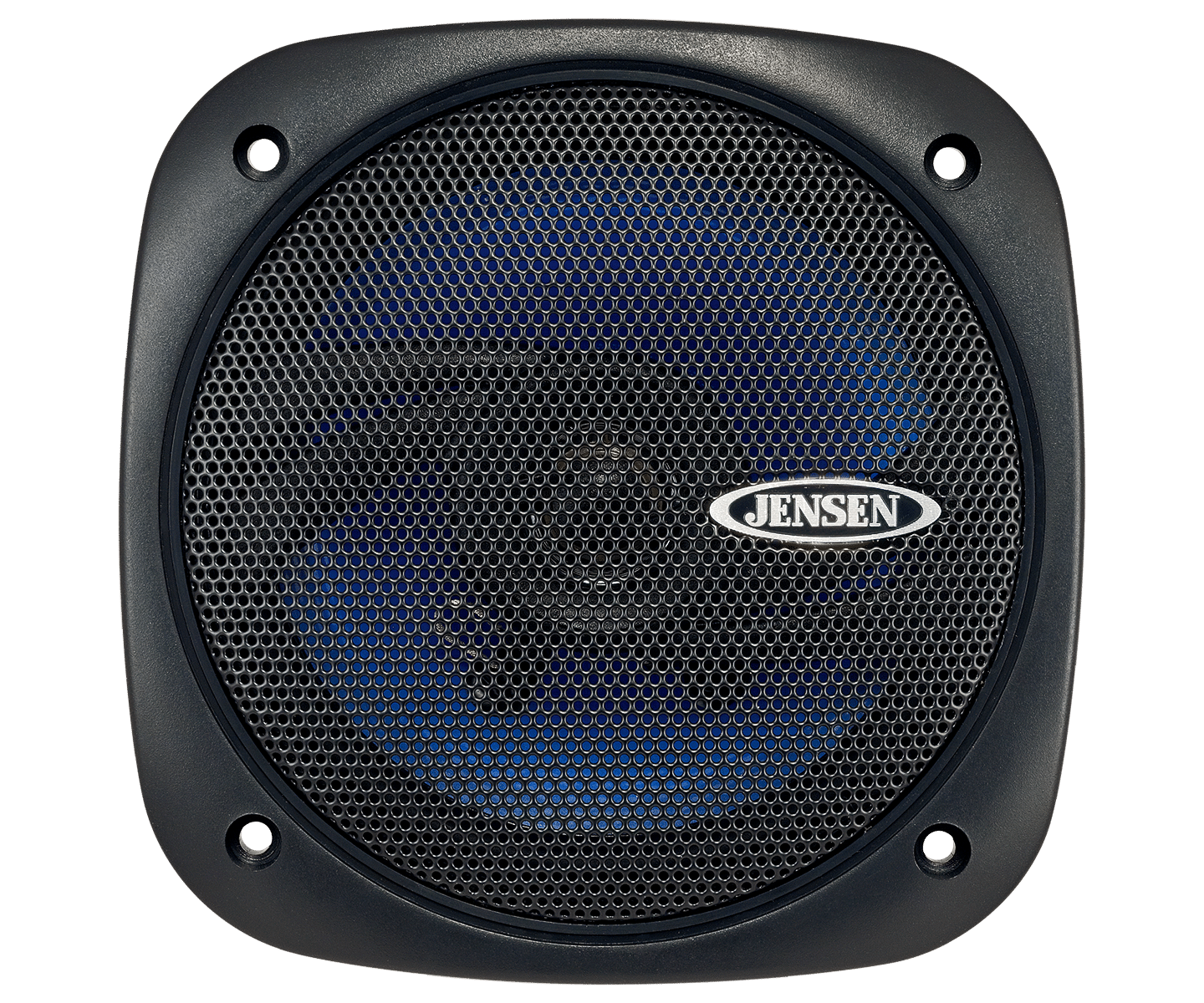

5.25″ Heavy Duty Sealed Speaker
SWJXHD54 (AM147513)
With great power comes great sound. Delivering up to 135 watts of power, this speaker covers a wide frequency range, making every note come alive. The durable construction and premium materials ensure a long life of music and offer a rich, dynamic sound that will make any work day more enjoyable.

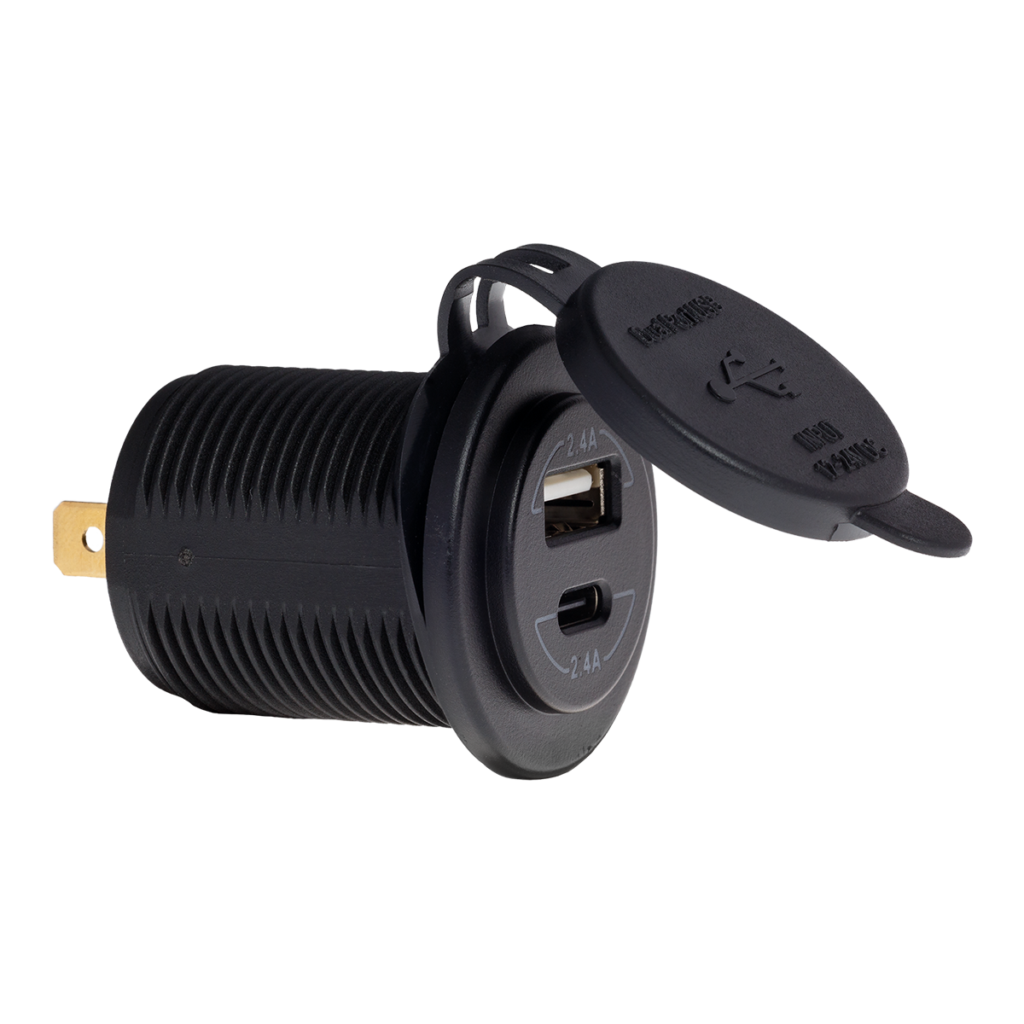

Dual USB Charger
SWUSB42CHD
This charger is built to withstand harsh conditions and features an epoxy-coated PCB and watertight rubber cover. It has USB-C and USB-A ports and a blue LED face for easy detection, making it perfect for reliable, high-speed charging on the go.

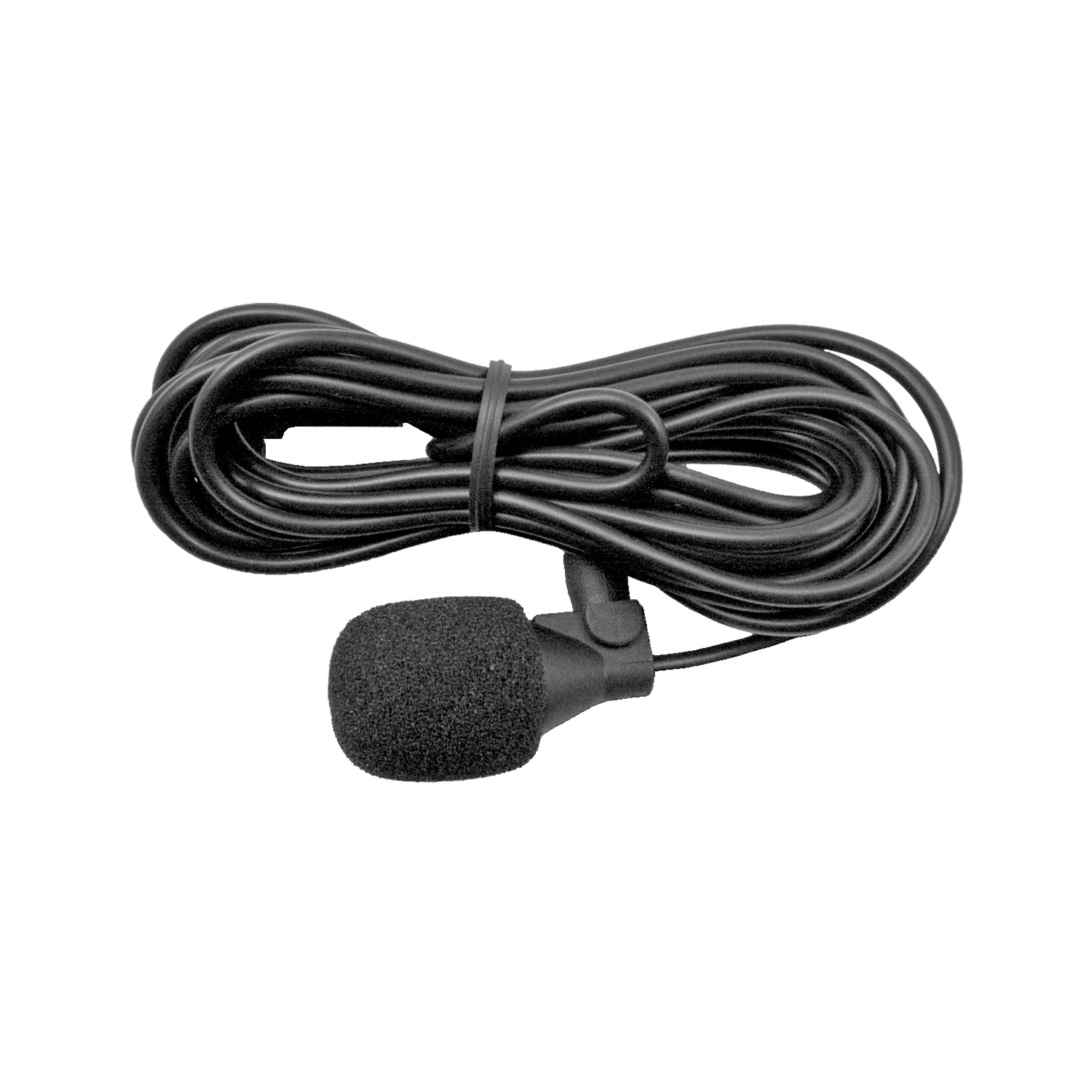

Omnidirectional Microphone
SWJMICHFP
This microphone ensures clear, hands-free communication in any vehicle or environment. It features a secure locking connector for reliable connectivity and versatile mounting options, including a visor clip and a 3M adhesive pad.

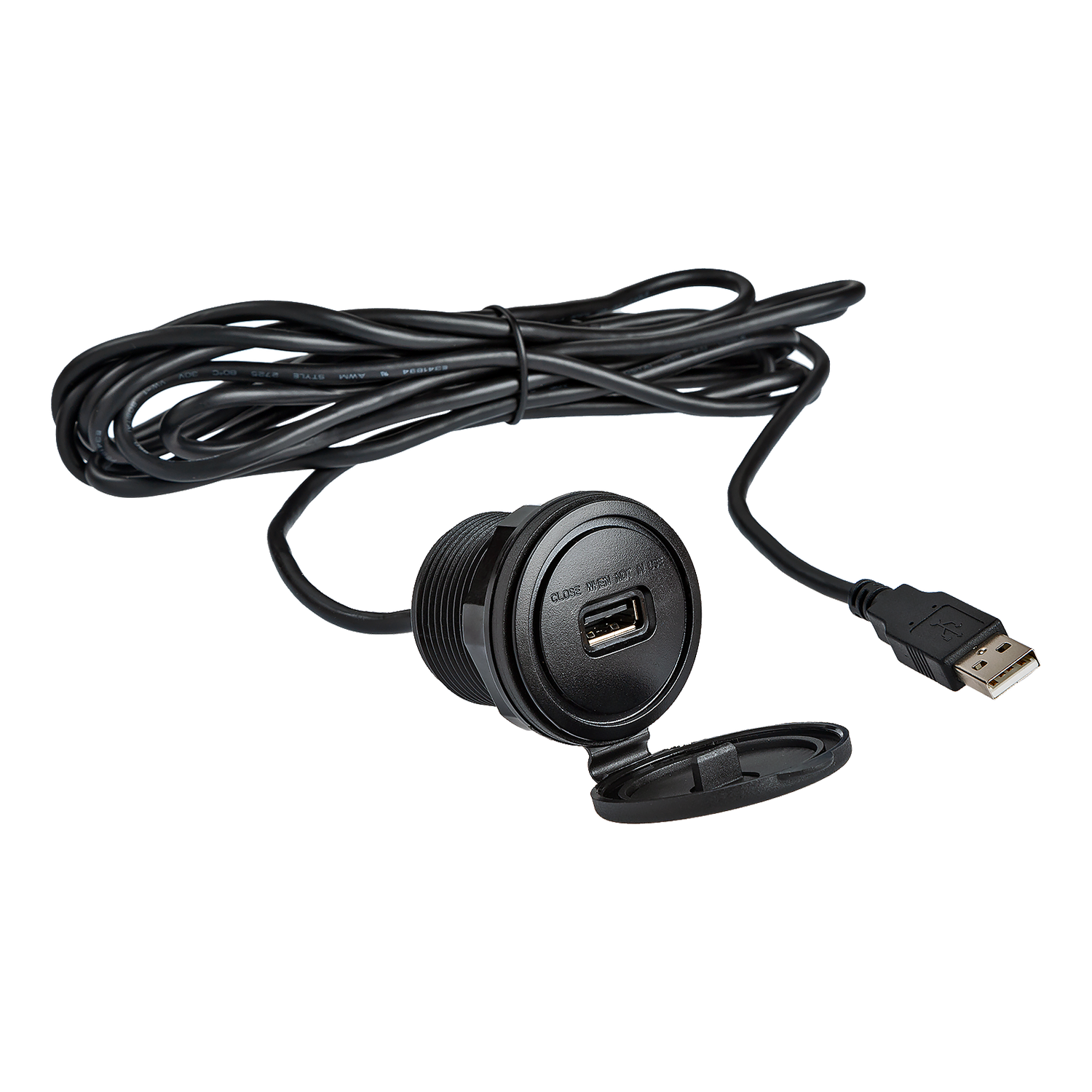

USB Hub
SWUSBP124A
Our waterproof USB input adapter, with its durable 10-ft. cable, allows effortless charging of external storage devices. Built to last, it features UV-resistant and corrosion-resistant finishes for exceptional durability.

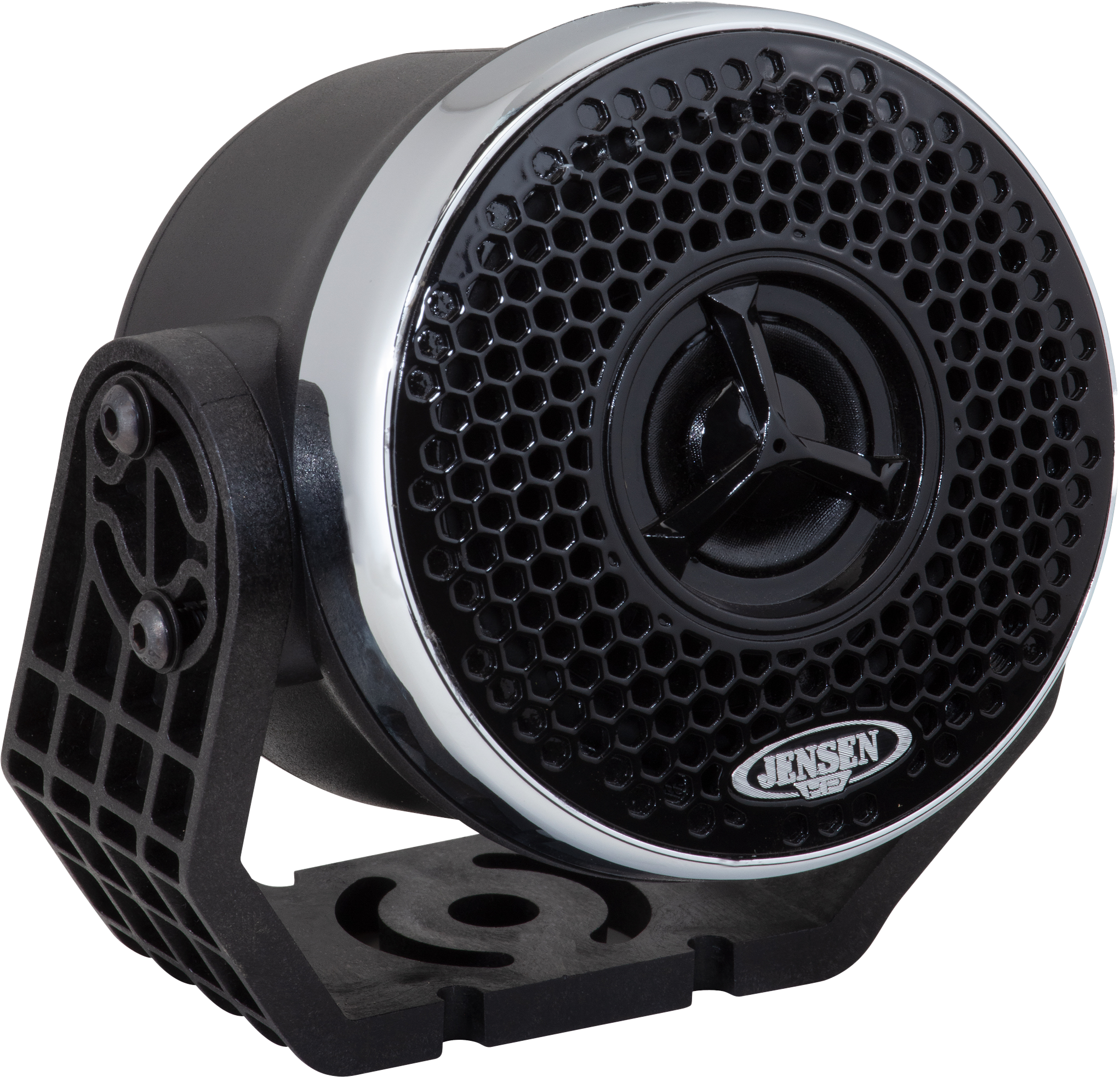

3” Universal Mount Two-Way Speakers
SWJXHD30PS
Upgrade any audio experience with these powerful two-way speakers. Designed for durability, they feature a waterproof bridged woofer and tweeter. The corrosion-, UV-, and water-resistant materials make them perfect for any environment. Compact yet mighty, they’re the ideal addition to elevate your audio setup.

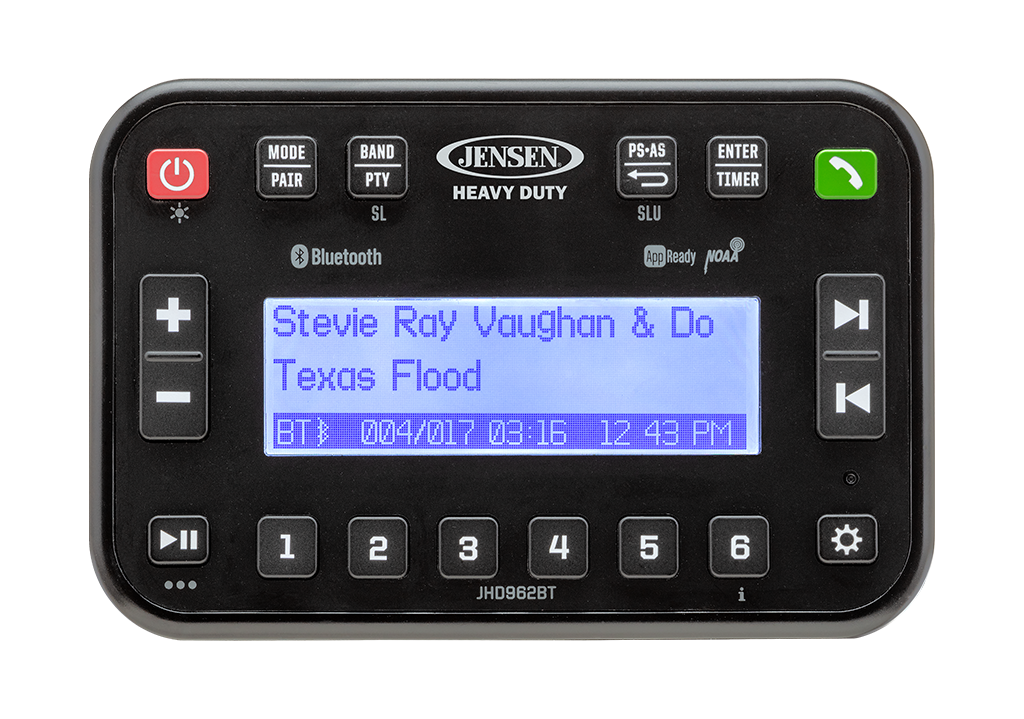

Mini Stereo with DAB+
SWJHD962BT
Our mighty mini stereo, equipped with Bluetooth® and DAB+, enhances the long drives ahead. It offers hands-free calling and crystal-clear digital broadcasting. Other features, like the rear USB port for device charging, make it an easy choice for a compact audio solution.

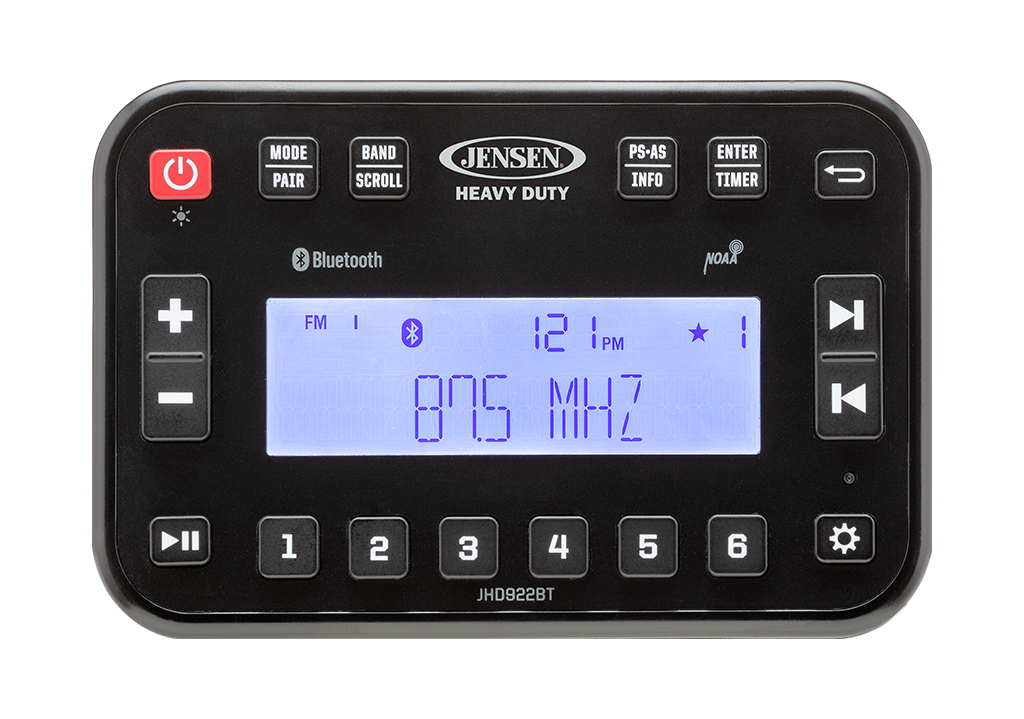

Mini Bluetooth® Stereo
SWJHD922BT
Outfitted with Bluetooth streaming, Weatherband, and 30 AM/FM tuner presets, this mini stereo delivers the same wattage as its counterparts while maintaining a discrete profile – unless, of course, it’s filling the cab with music.

USB Hub
SWUSBP124A
Our waterproof USB input adapter, with its durable 10-ft. cable, allows effortless charging of external storage devices. Built to last, it features UV-resistant and corrosion-resistant finishes for exceptional durability.

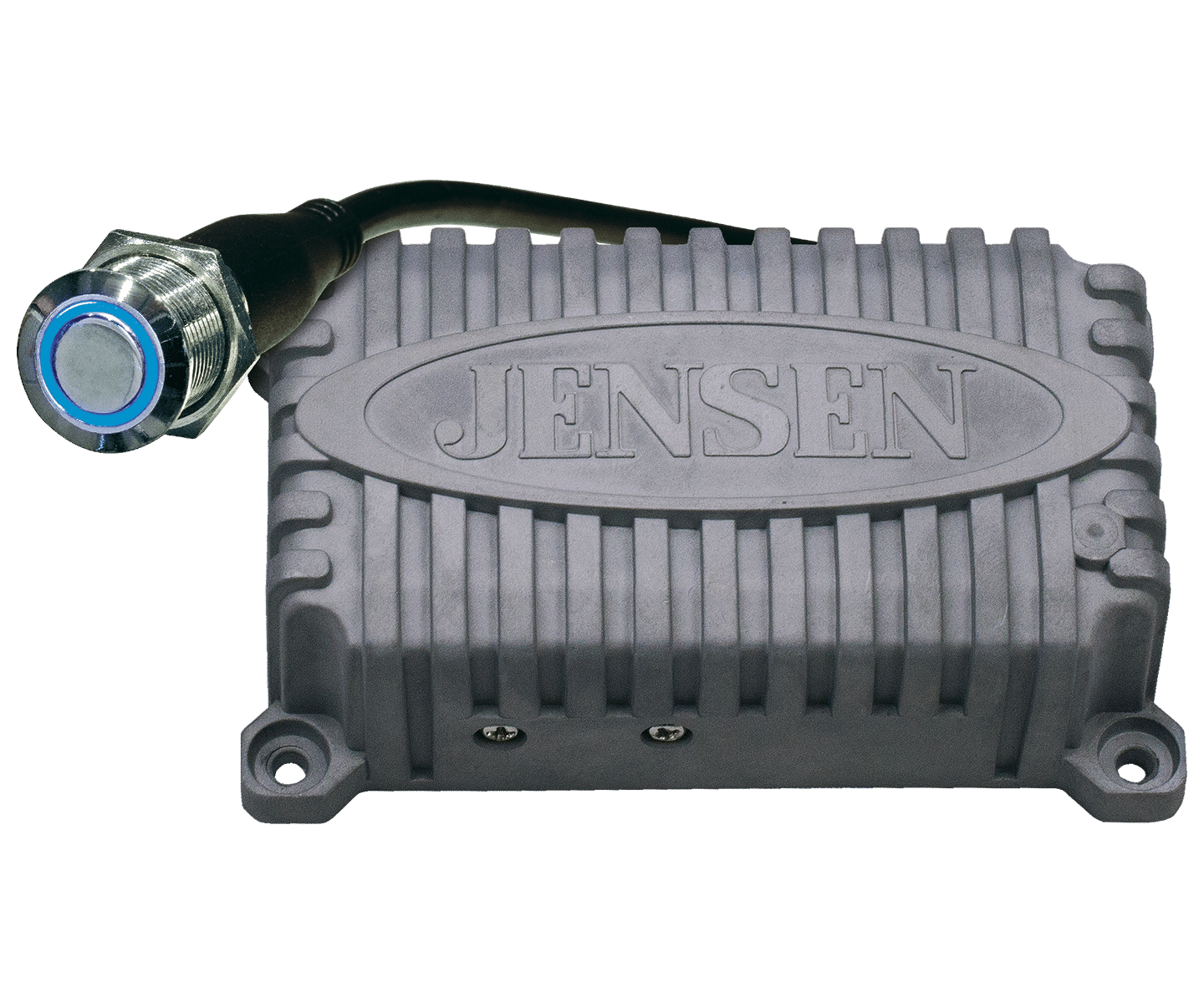

2-Channel, Bluetooth® Amplifier
SWJAHD240BT
Built to withstand the elements and outfitted with powerful audio, this amplifier offers seamless Bluetooth streaming for a wireless, hassle-free experience. The sleek flush-mounted power button with blue LED light adds a touch of modern style.

Omnidirectional Microphone
SWJMICHFP
This microphone ensures clear, hands-free communication in any vehicle or environment. It features a secure locking connector for reliable connectivity and versatile mounting options, including a flush mount that resembles an original installation.

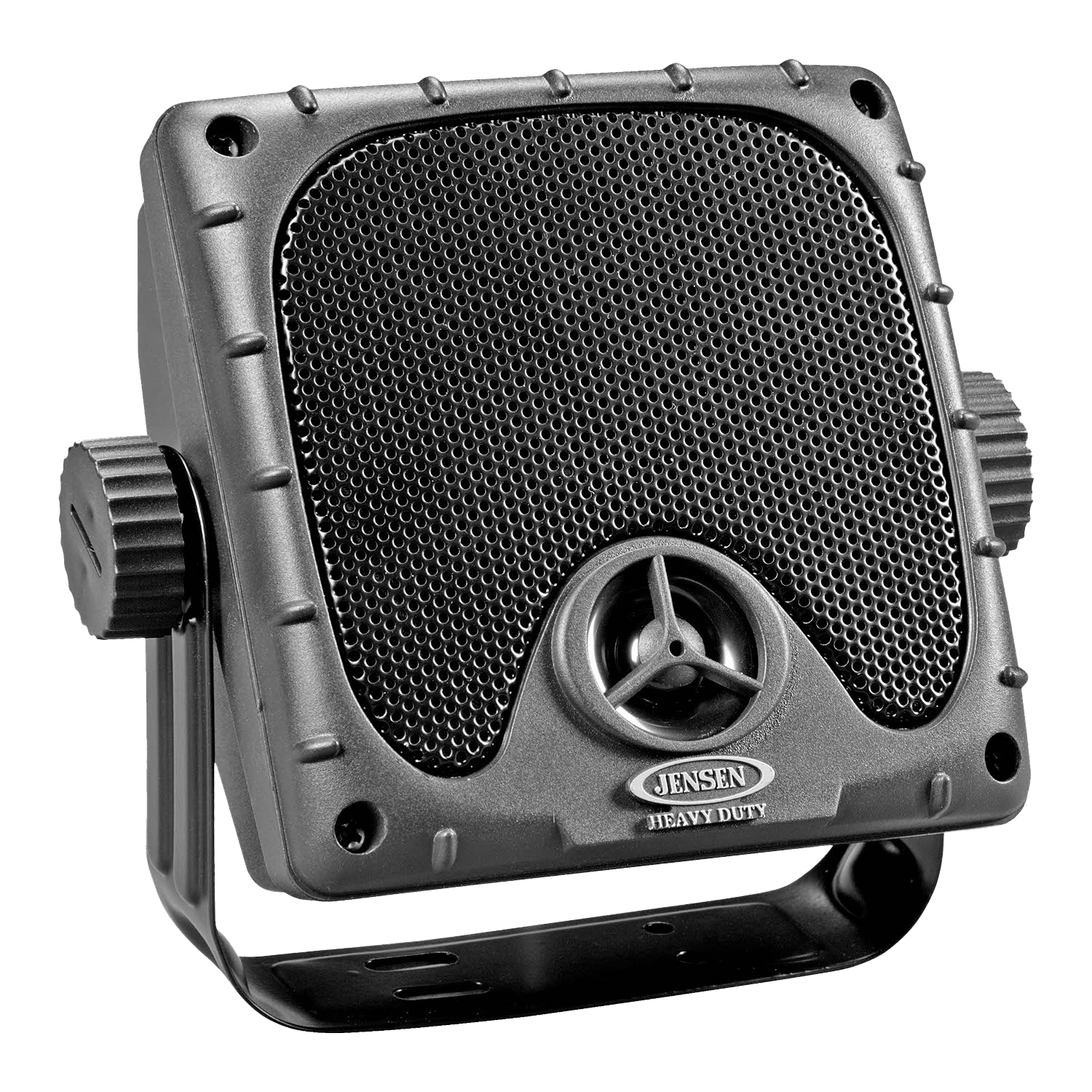

3.5” Heavy Duty Mini Speakers
SWJXHD35
Packing a punch in a compact design, this duo is ready to offer exceptional performance in tough environments. The speakers offer surface, flush, or bracket mounting options. With a max power handling of 30 Watts and RMS power range of 15 watts, it’s the perfect choice for compact spaces requiring high-performance audio.

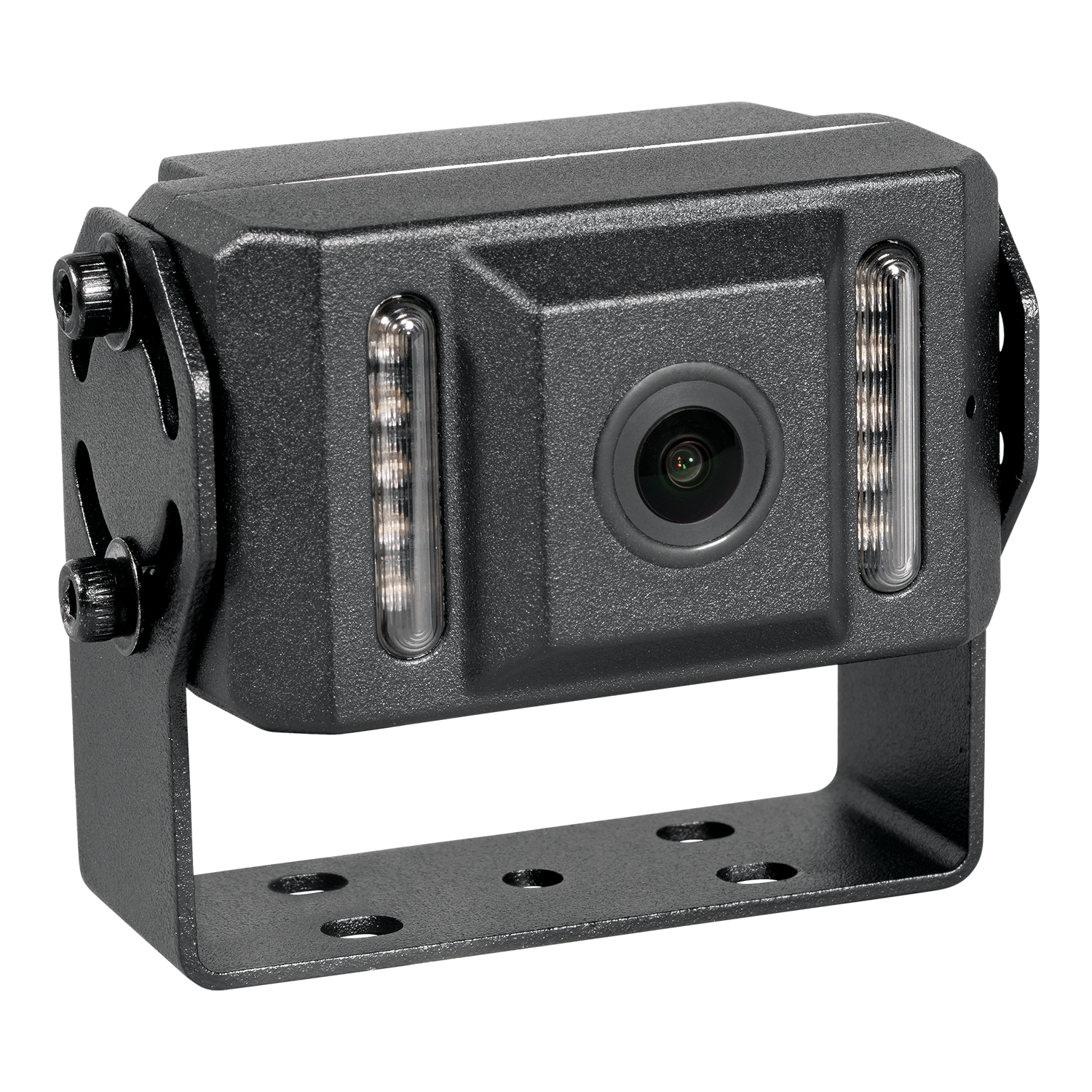

Voyager Observation

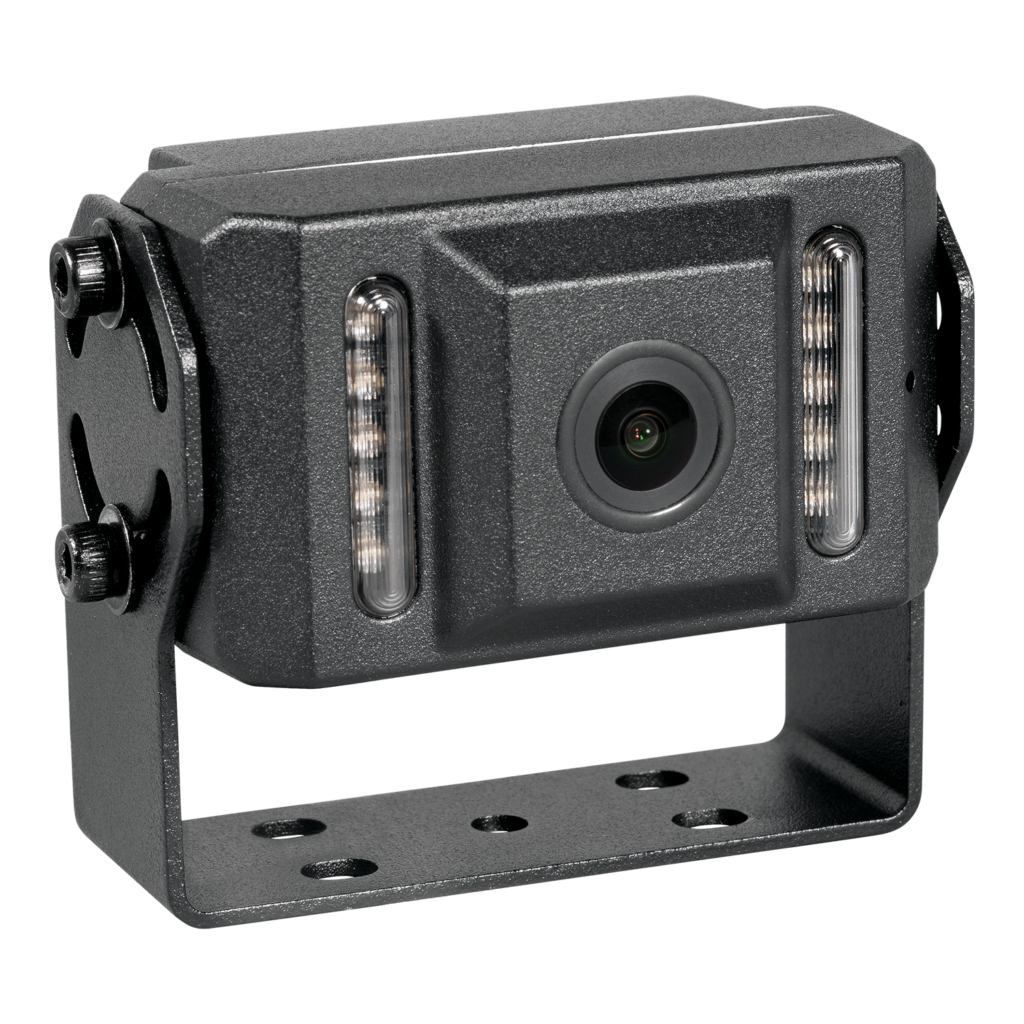

Color CMOS Camera
SWVCMS24B
Stay aware at all times with the versatile U-bracket mounting camera. Its CMOS sensor ensures sharp, clear images. Built for long days on the road, it features durable aluminum housing, low-light assistance, a built-in microphone, and a corrosion-resistant design for reliable, discreet monitoring.

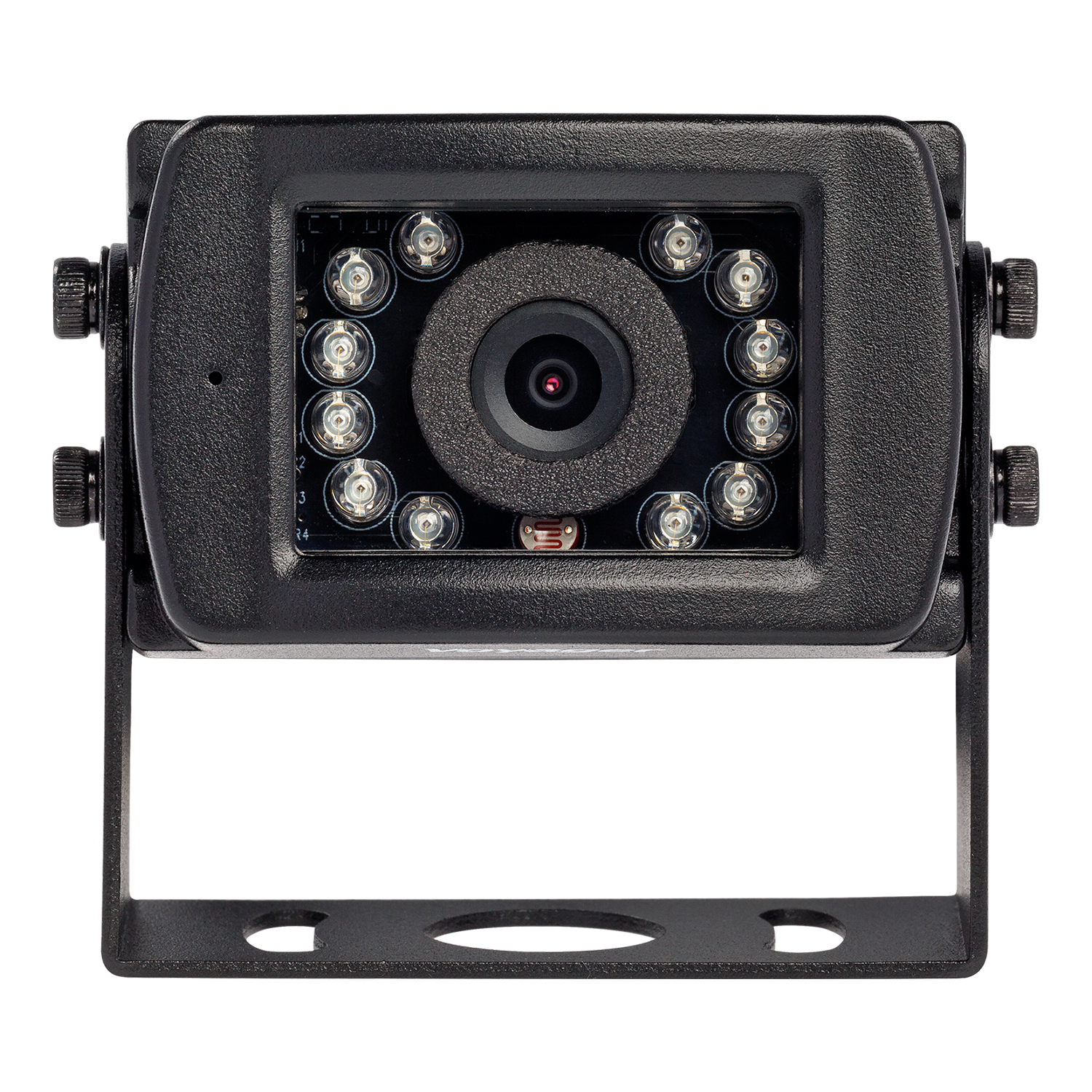

Rear Observation Camera with CMOS Sensor *
SWVCMS172B
Designed to perform in any condition, this camera delivers reliable surveillance day or night. It boasts exceptional low-light and daylight vision, complete with water-resistant housing, advanced infrared technology, and a compact design for easy installments.

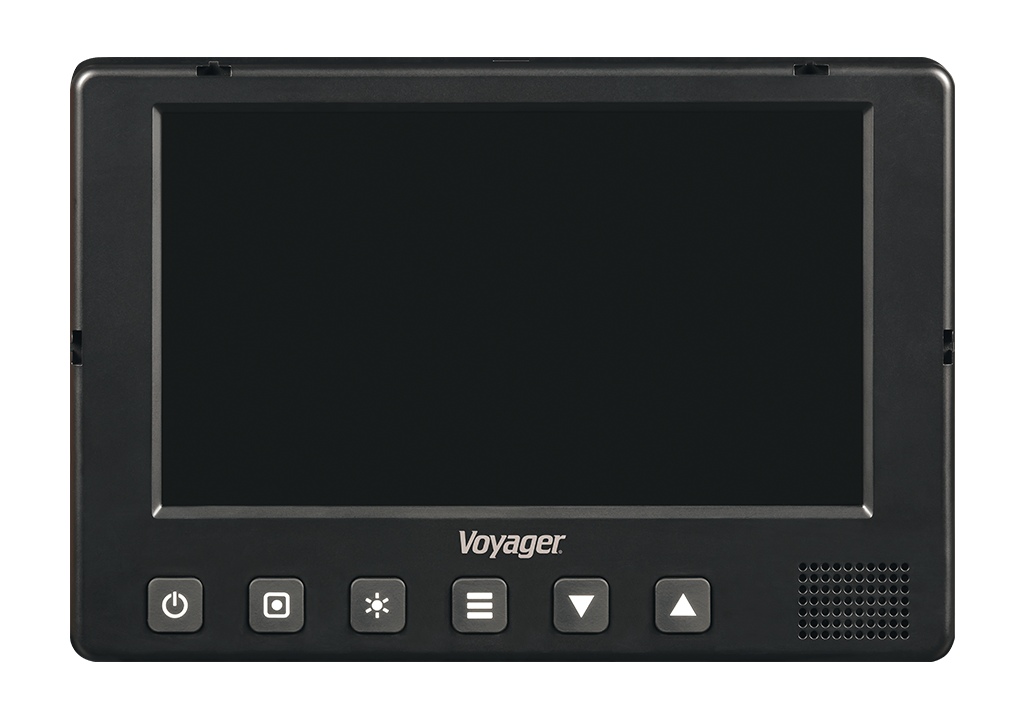

Heavy Duty QuadView 7” Monitor *
SWVOM719WP
Boost safety and efficiency with our rugged 7-inch QuadView monitor, which offers a waterproof design and versatile display options. The four camera inputs, six triggers, and the monitor’s comprehensive monitoring capabilities make it perfect for every day on the job site.

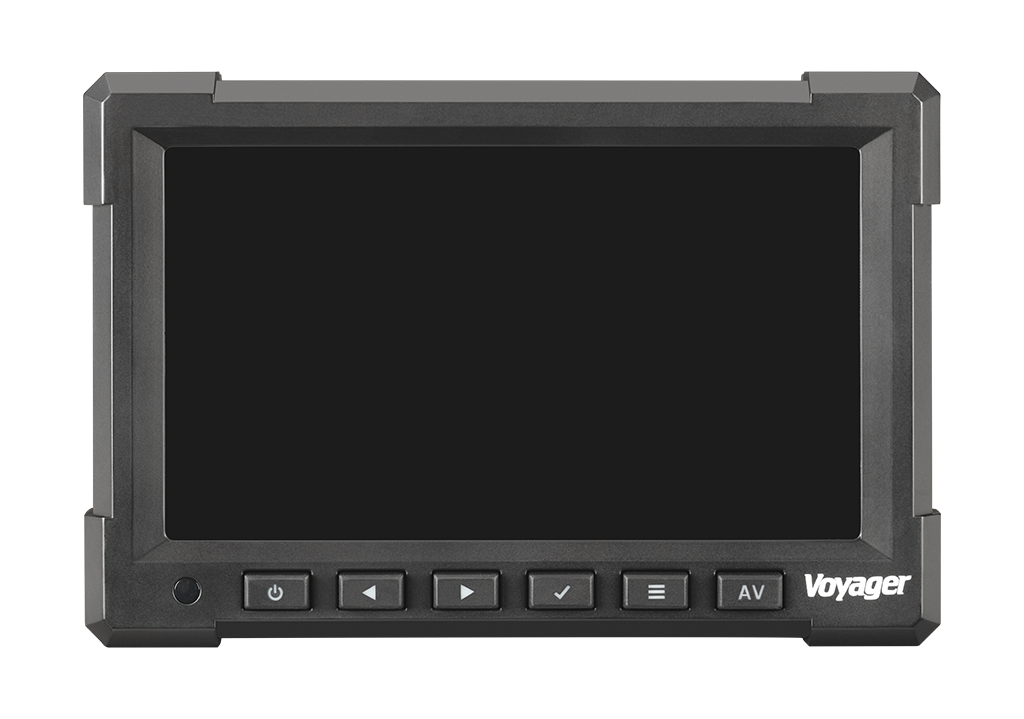

Observation 7″ Monitor *
SWVOM718
Experience heightened efficiency and safety each day with our 7-inch LCD monitor, which boasts a wide-view panel, three versatile camera inputs, compatibility with both NTSC and PAL video signals, and multiple mounting options.

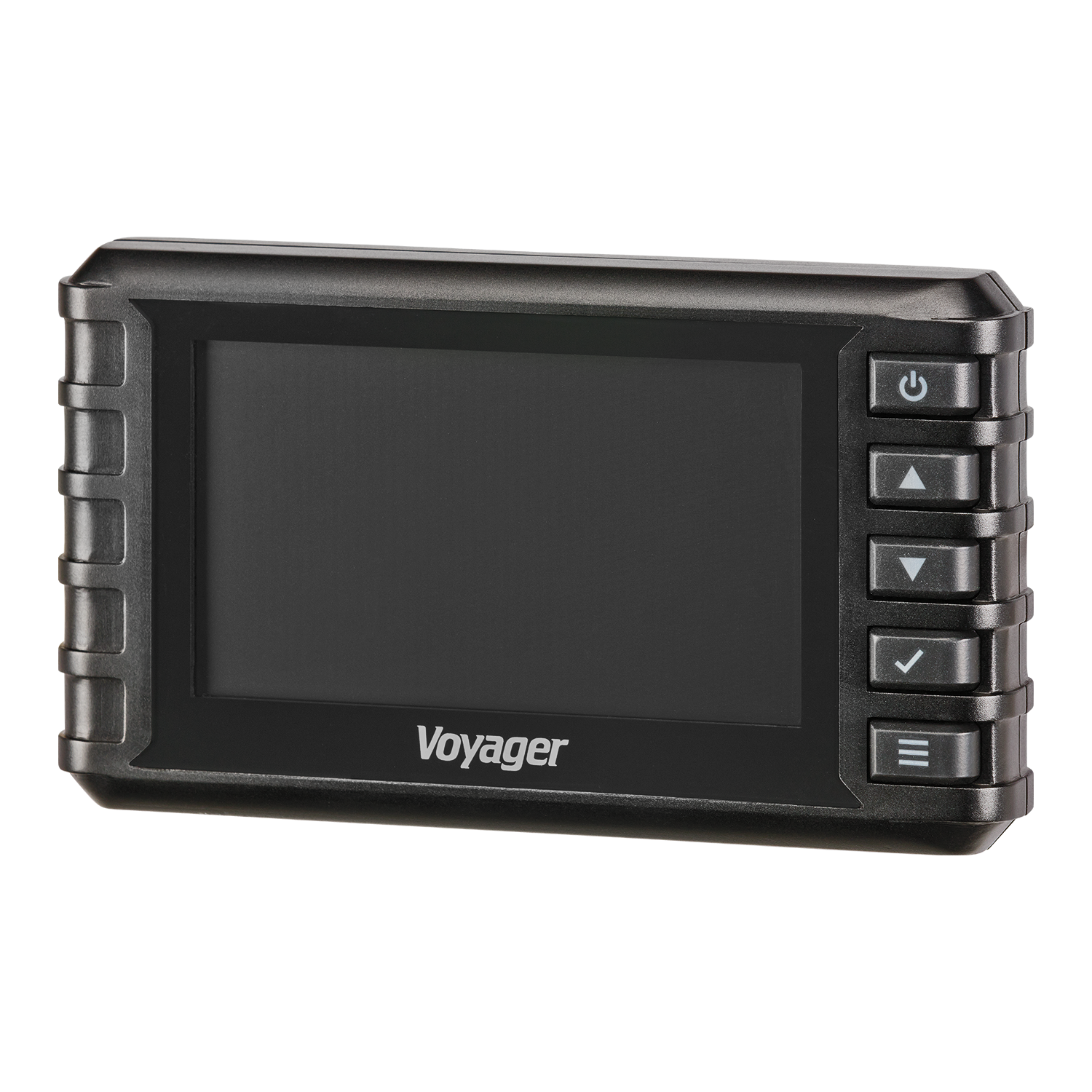

4.3″ Observation Monitor *
SWVOM43HD
Boost your safety and convenience with our rugged, heavy-duty monitor, which supports up to three cameras. The monitor ensures crystal-clear visibility and long-lasting durability with an anti-glare and scratch-resistant lens display and an IPX6 water-resistance rating.

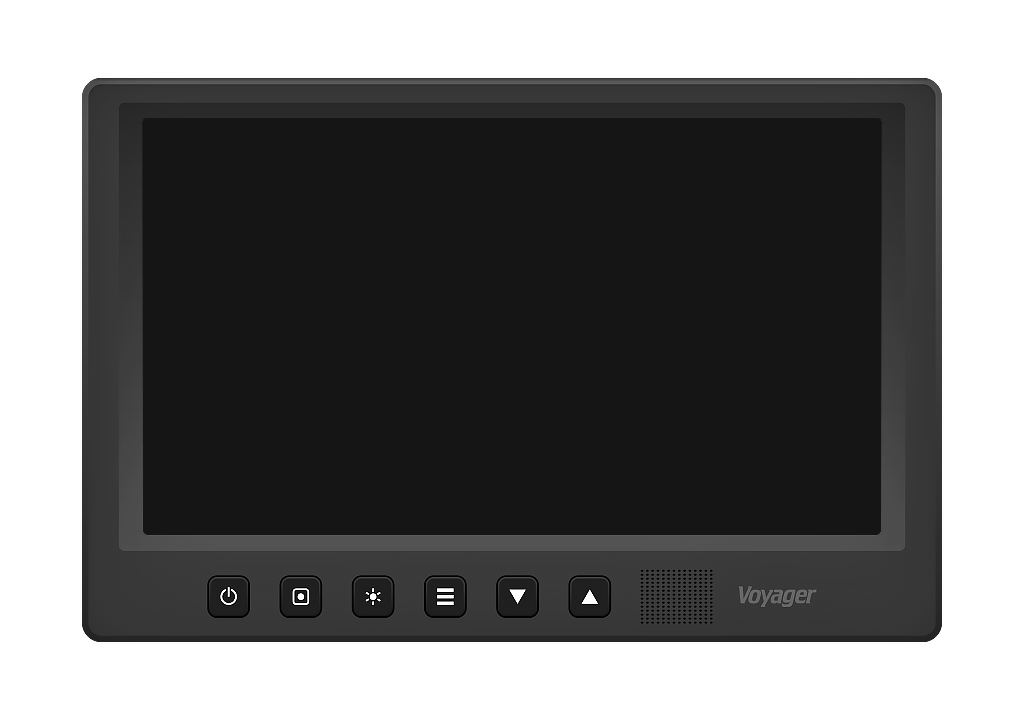

10” Heavy Duty Observation Monitor *
SWVOM1023
Elevate your monitoring experience with a 10.1” color display monitor, offering Single, Split, and Quad viewing modes. It features intuitive backlit control buttons, a built-in speaker, four camera inputs, and six triggers. With robust vibration and waterproof ratings, it’s designed for ultimate durability.
* Can be purchased as a kit.
Kits

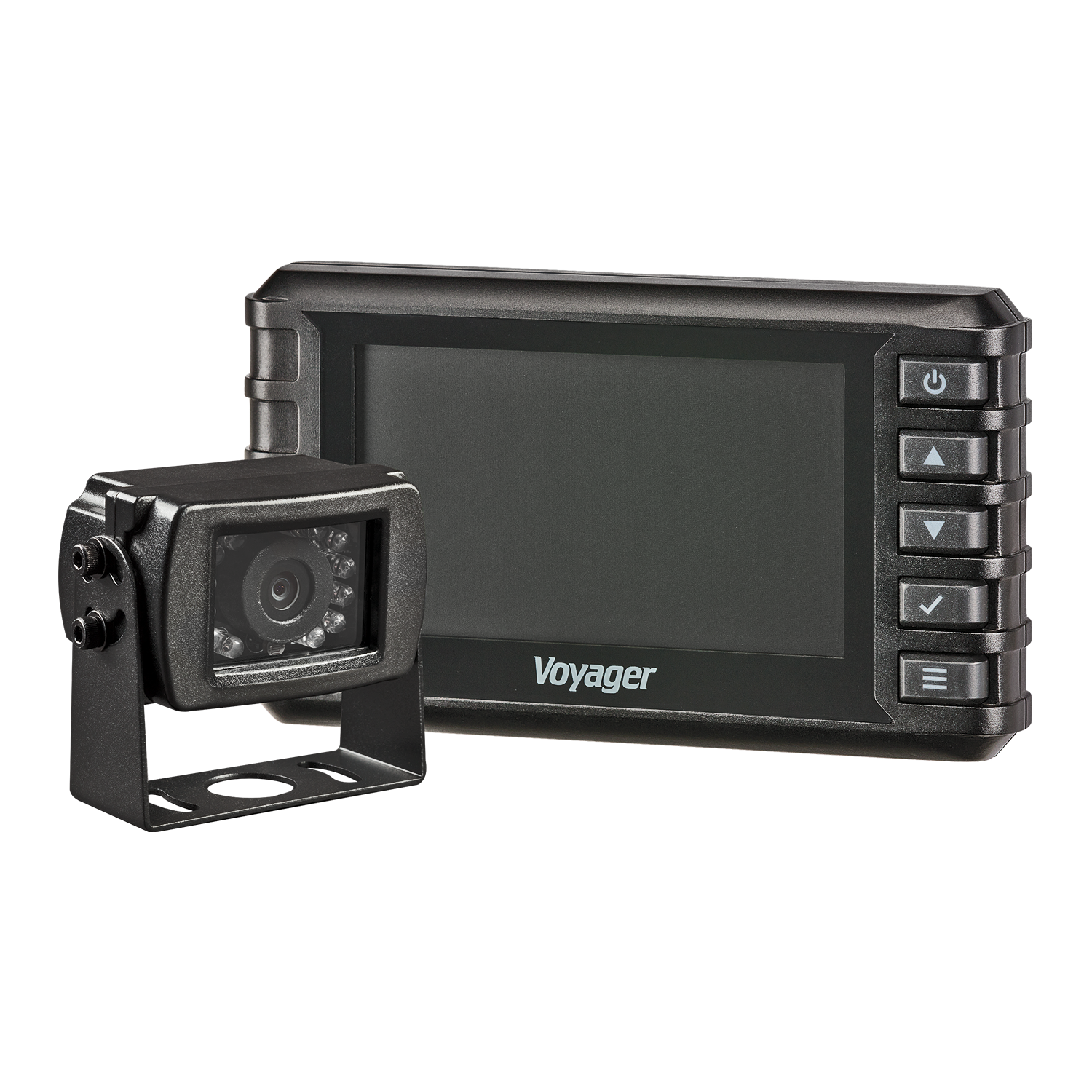

Heavy Duty Observation System
SWVOM43HDCL1B
This heavy-duty observation system is built for rugged conditions and enhanced safety. The 4.3” LCD monitor (SWVOM43HD) supports up to three cameras, displays real-time object distance, and has both manual and automatic source selection. Each IP69K waterproof camera (SWVCMS172B) performs well in any light, with 12 IR LEDs for night vision and a microphone for audio. Includes a 15-foot camera cable and 4-inch monitor mount for secure installation.

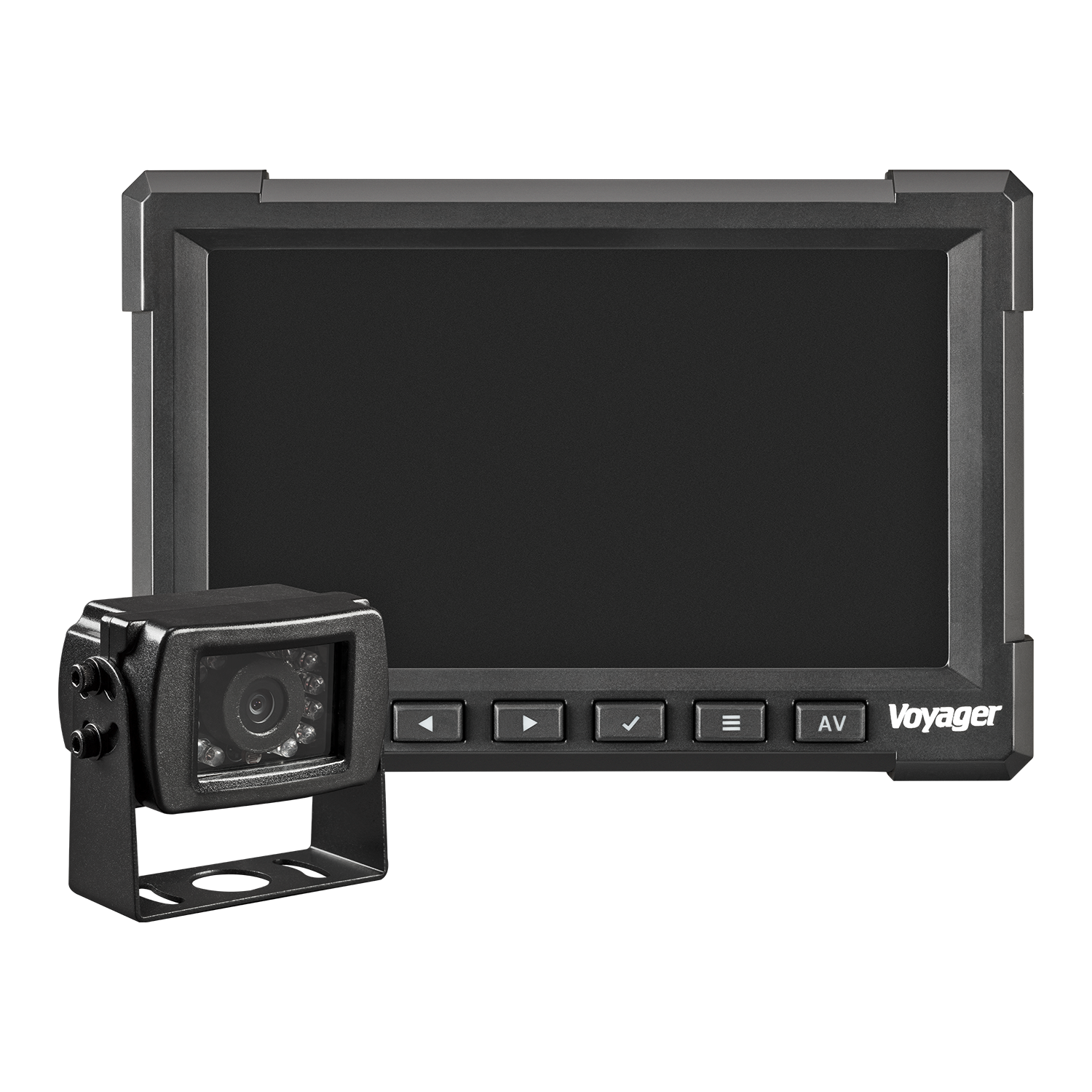

Voyager ToughCam Single-Camera Observation Kit
SWVOS7MDCL1B
Enhance your observation with this single-camera kit featuring a 7” monitor (SWVOM718) and waterproof camera (SWVCMS172B). The monitor’s white LED illumination, back-lit controls, and day/night modes ensure clear viewing in any light. The waterproof camera (IP69K) provides sharp visuals with 12 infrared LEDs for night vision and includes a built-in microphone for audio. Kit includes 75- and 25-foot cables and a 4-inch monitor mount for flexible installation.

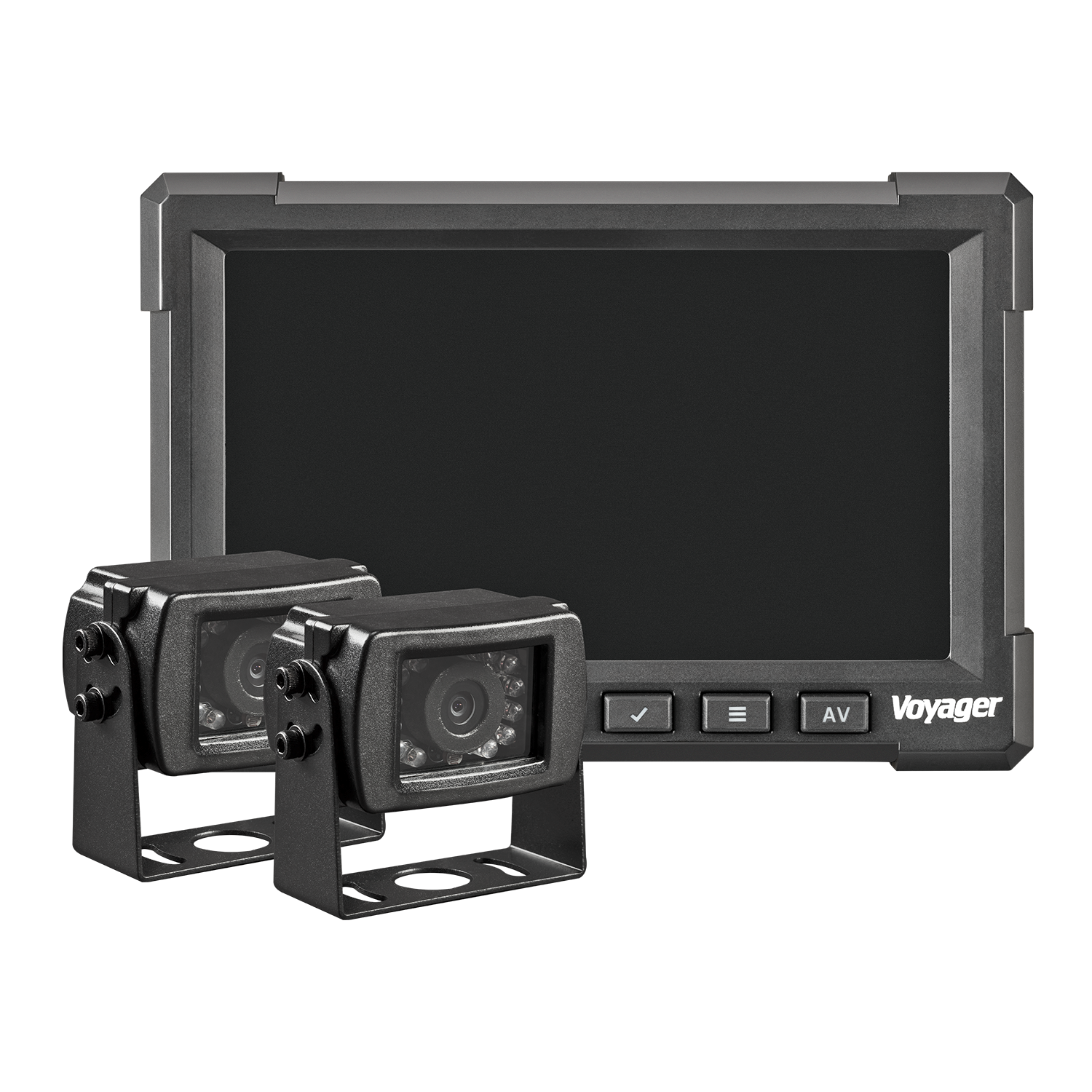

Voyager ToughCam Two-Camera Observation Kit
SWVOS7MDCL2B
Elevate your observation with this two-camera kit, featuring a 7” monitor (SWVOM718) and two waterproof cameras (SWVCMS172B). The monitor’s LED illumination and back-lit controls provide clear visibility in any light, with manual or automatic source selection. Both cameras offer durable performance with 12 infrared LEDs for night vision and built-in microphones for audio capture. Kit includes a 75-foot cable, two 25-foot cables, and a 4-inch monitor mount for flexible installation.

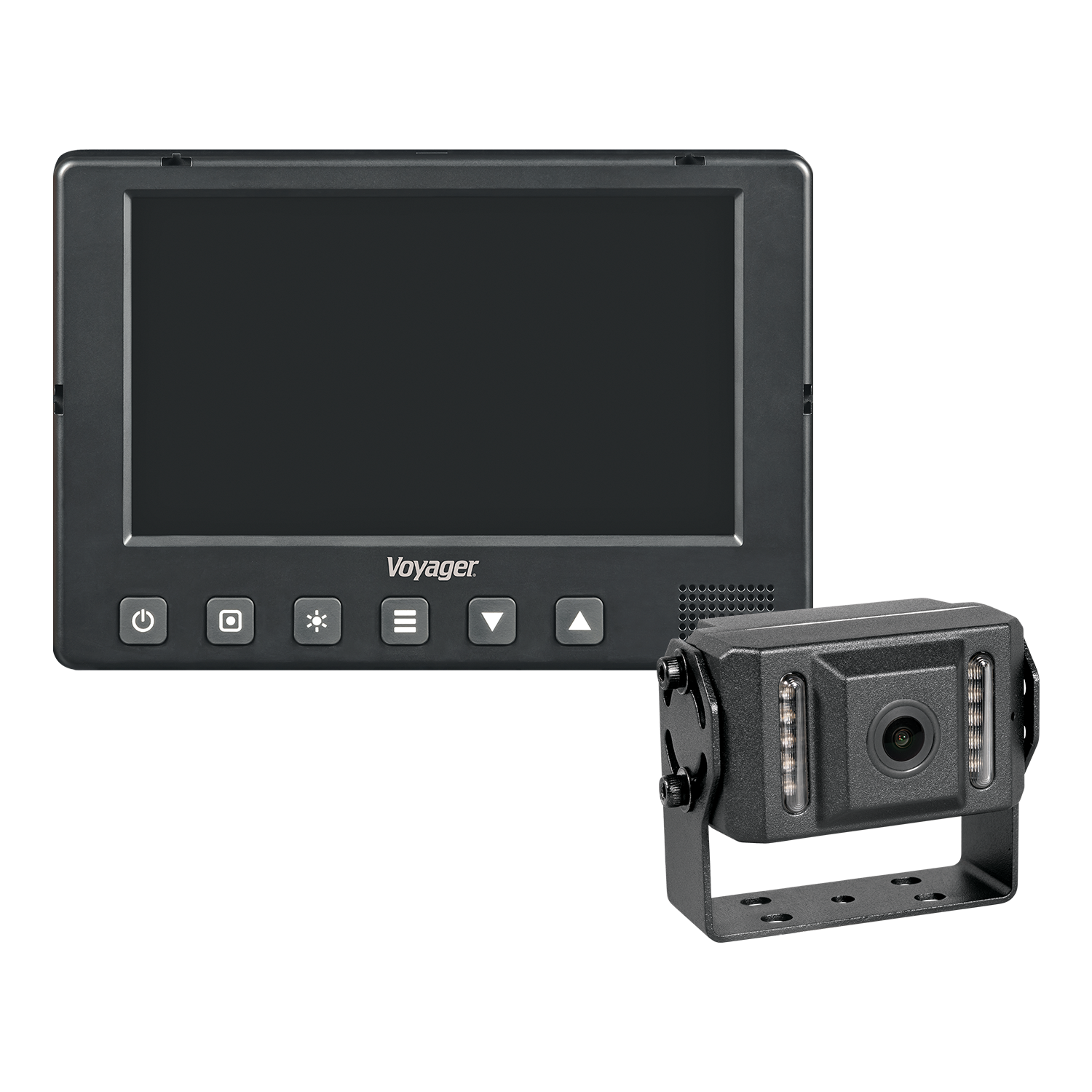

Heavy Duty Single-Camera Observation Kit
SWVOSHDCL1
Enhance your observation setup with this single-camera kit, featuring a 7″ monitor (VOM719WP) and a waterproof camera (VCMS24B). The monitor offers single-image, split-screen, or QuadView viewing modes. The camera includes user-selectable normal/mirror image orientation via switch for versatile viewing options. The kit includes two 25-foot cables (CEC25) and a 6-inch monitor mount (VOSHD6MNT) for flexible installation.
Voyager Wireless

Color CMOS Camera
SWVCMS24B
Stay aware at all times with the versatile U-bracket mounting camera. Its CMOS sensor ensures sharp, clear images. Built for long days on the road, it features durable aluminum housing, low-light assistance, a built-in microphone, and a corrosion-resistant design for reliable, discreet monitoring.

Rear Observation Camera with CMOS Sensor
SWVCMS172B
Designed to perform in any condition, this camera delivers reliable surveillance day or night. It boasts exceptional low-light and daylight vision, complete with water-resistant housing, advanced infrared technology, and a compact design for easy installments.

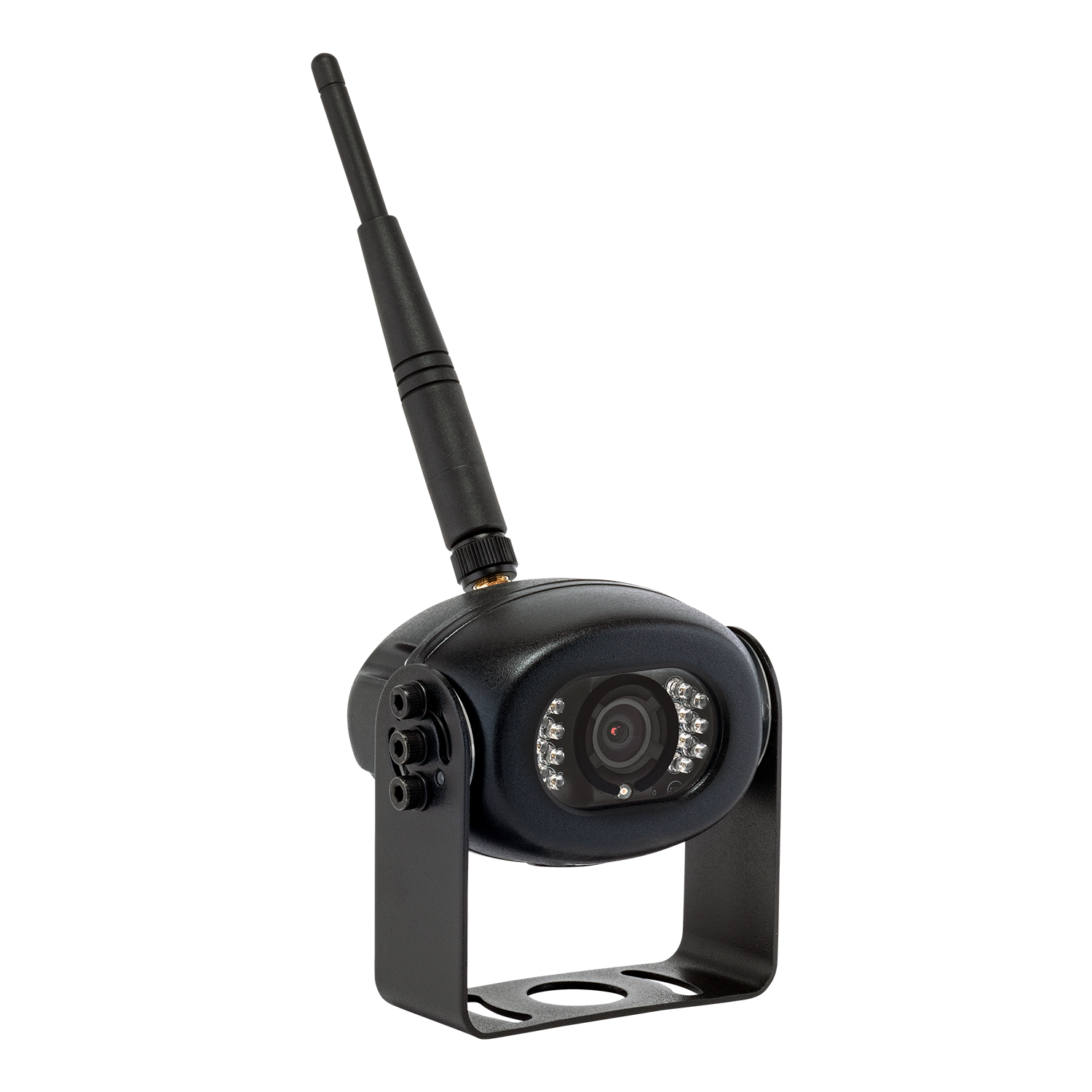

Digital Wireless Camera
SWWVSXC150
Experience unparalleled clarity and performance with our advanced camera, compatible with WiSight 2.0 monitors. Water-resistant, it features stunning HD visuals, versatile power options, and robust features like IR assist and audio capture, making it ideal for any monitoring environment.

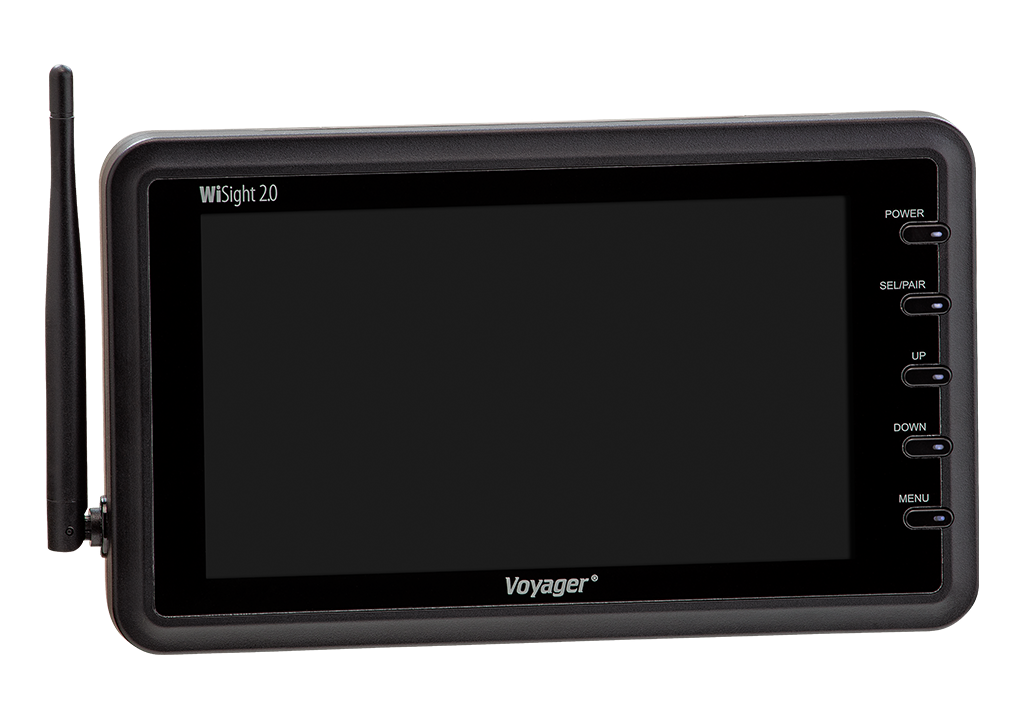

Digital Wireless Monitor
SWWVSXM70
Connect up to four wireless cameras with auto-pairing at the touch of a button. Customize your view with normal or mirrored images and Single, Split, or Quadview options. Complete with a built-in speaker, suction cup mount, and a 60-foot solid signal, this display ensures versatile and reliable monitoring.

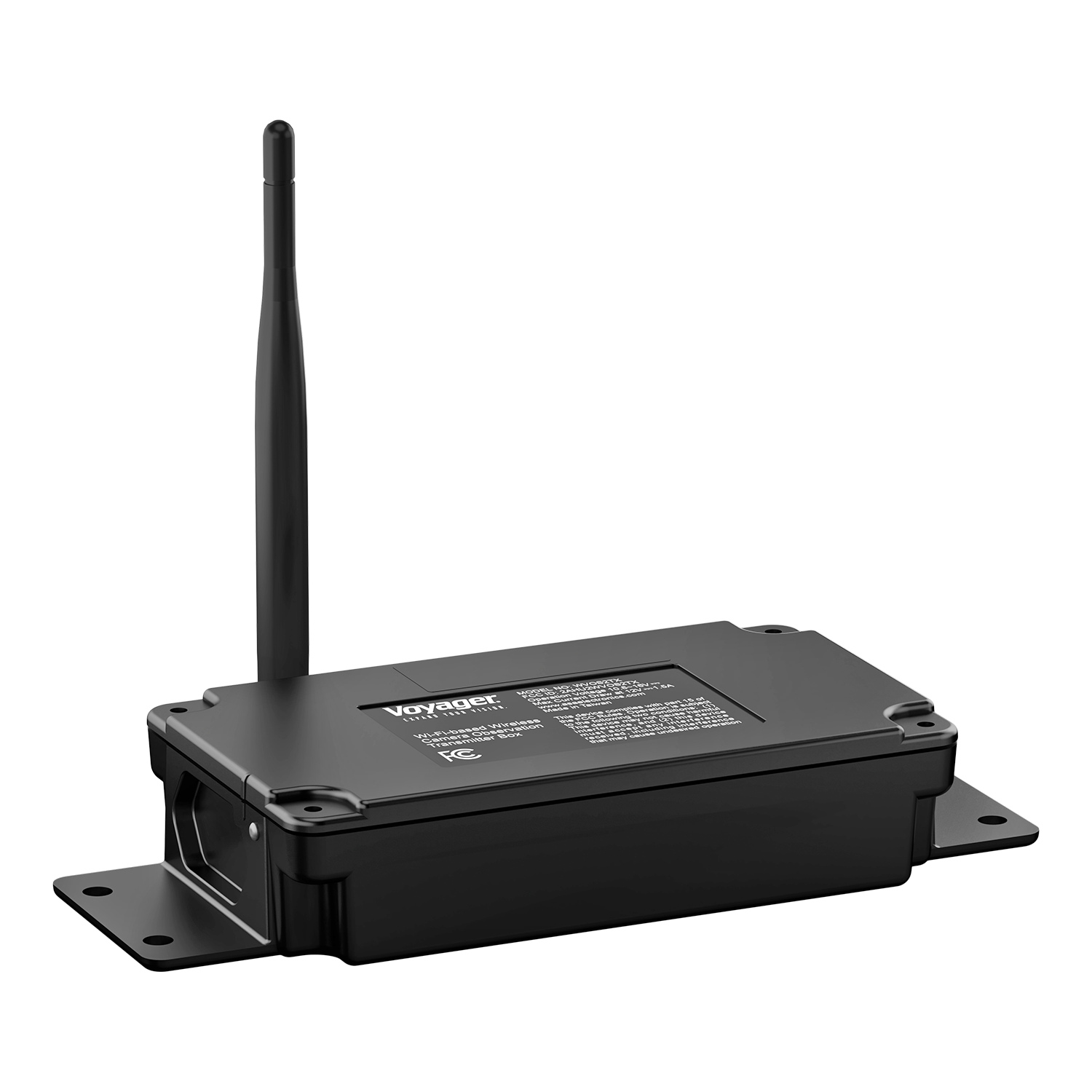

Short-Range WiFi Transmitter
SWWVOS2TX
Improve your monitoring capabilities with our digital wireless transmitter. The Voyager Vision app transforms your smart device into a live monitor, providing 2-way split video over Wi-Fi with a range of up to 100 meters. Connect up to two cameras, enjoy customizable on-screen display lines and snapshots, and rely on IP67 waterproof durability for all-weather use.
Audio + Observation Adapters

Antenna Lead Adapter
SW40VW12
Adapts the vehicle’s original antenna cable to plug into an aftermarket radio with a male Motorola™ connector on one end and a male European-style FAKRA connector on the other.

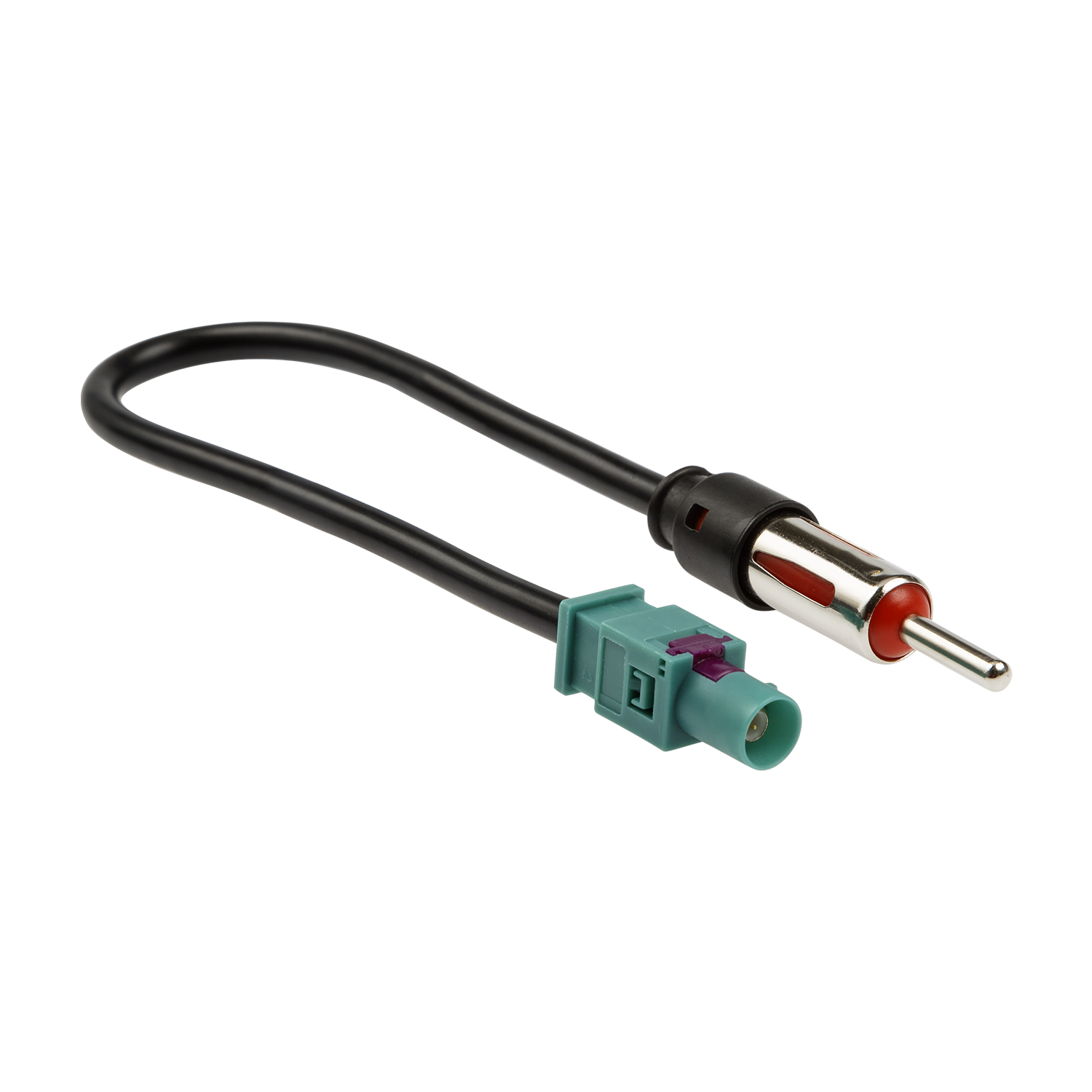

Antenna Lead Adapter
SW40EU10
Adapts the vehicle’s original antenna cable to plug into an aftermarket radio with a male Motorola™ connector on one end and a male European-style FAKRA connector on the other.

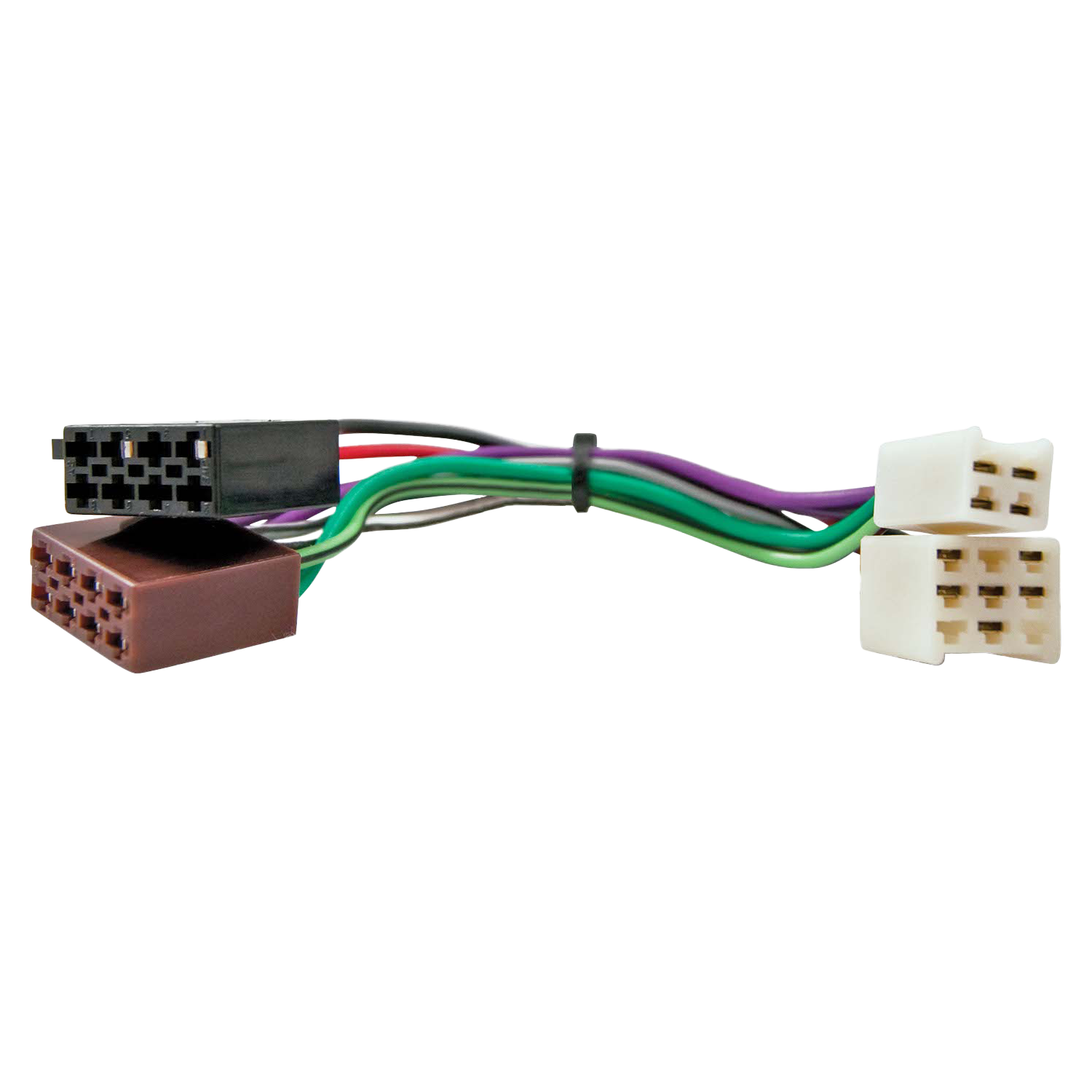

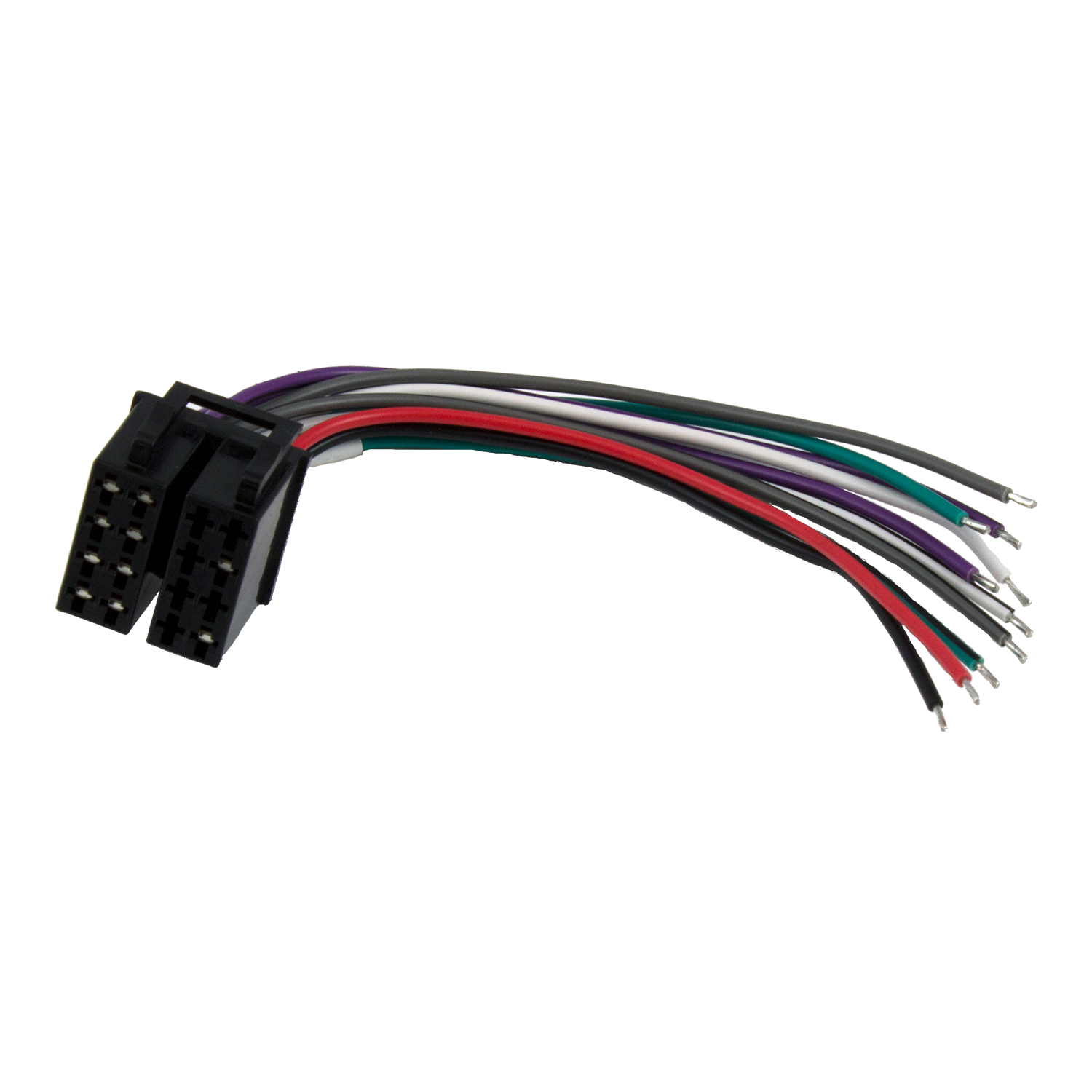

Adapter Wire Harness
SW31100102
This adapter wire harness features an ISO male connector on one end and a 9-pin/4-pin Cadillac Hoffman connector on the other, allowing for a seamless connection to your new radio.

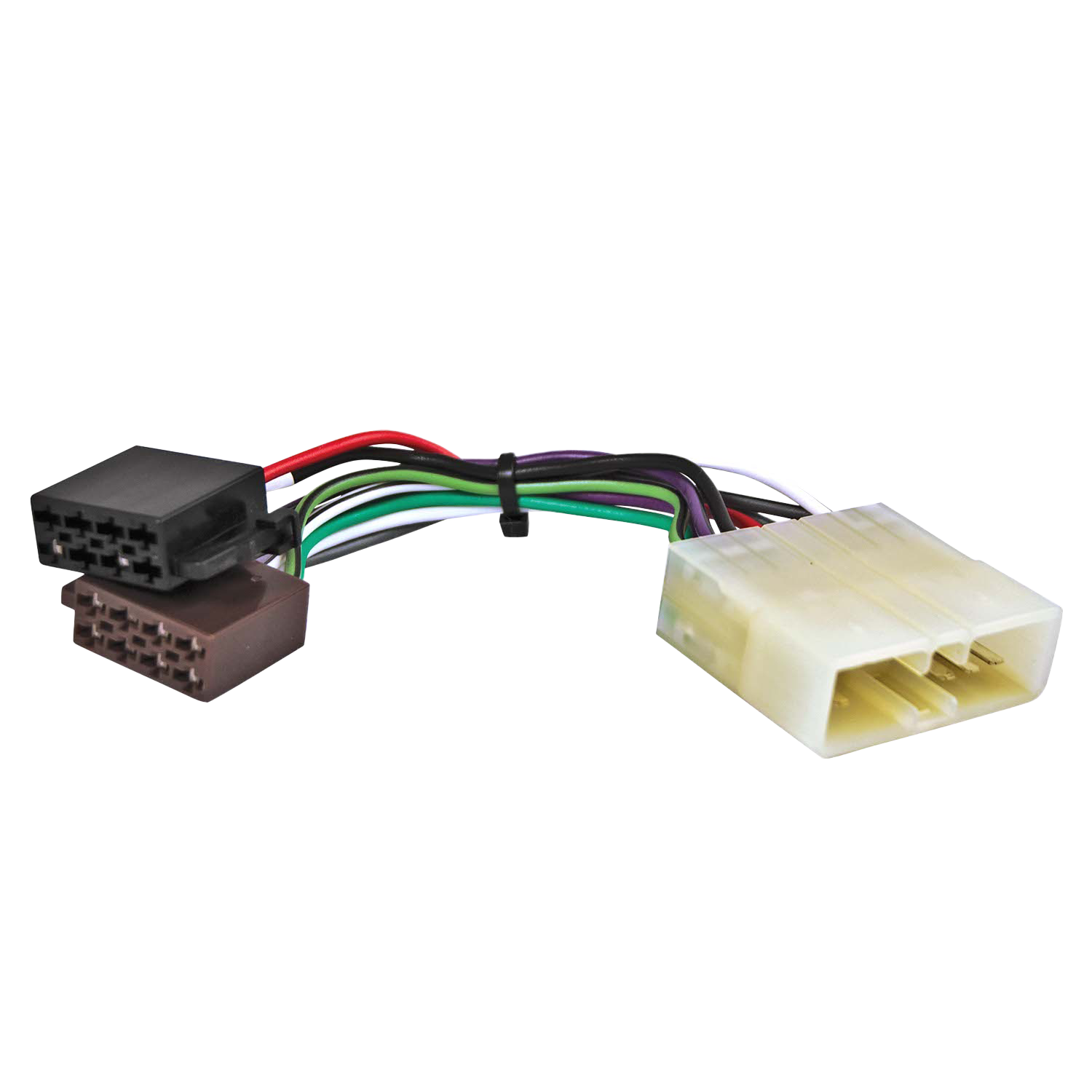

Adapter Wire Harness
SW31100104
This adapter wire harness features an ISO male connector on one end and a 13-pin Yazaki connector on the other, allowing for a seamless connection to your new radio.

Adapter Wire Harness
SW31100104
This adapter wire harness features an ISO male connector on one end and blunt cut wires on the other, allowing for a custom connection to an aftermarket radio.

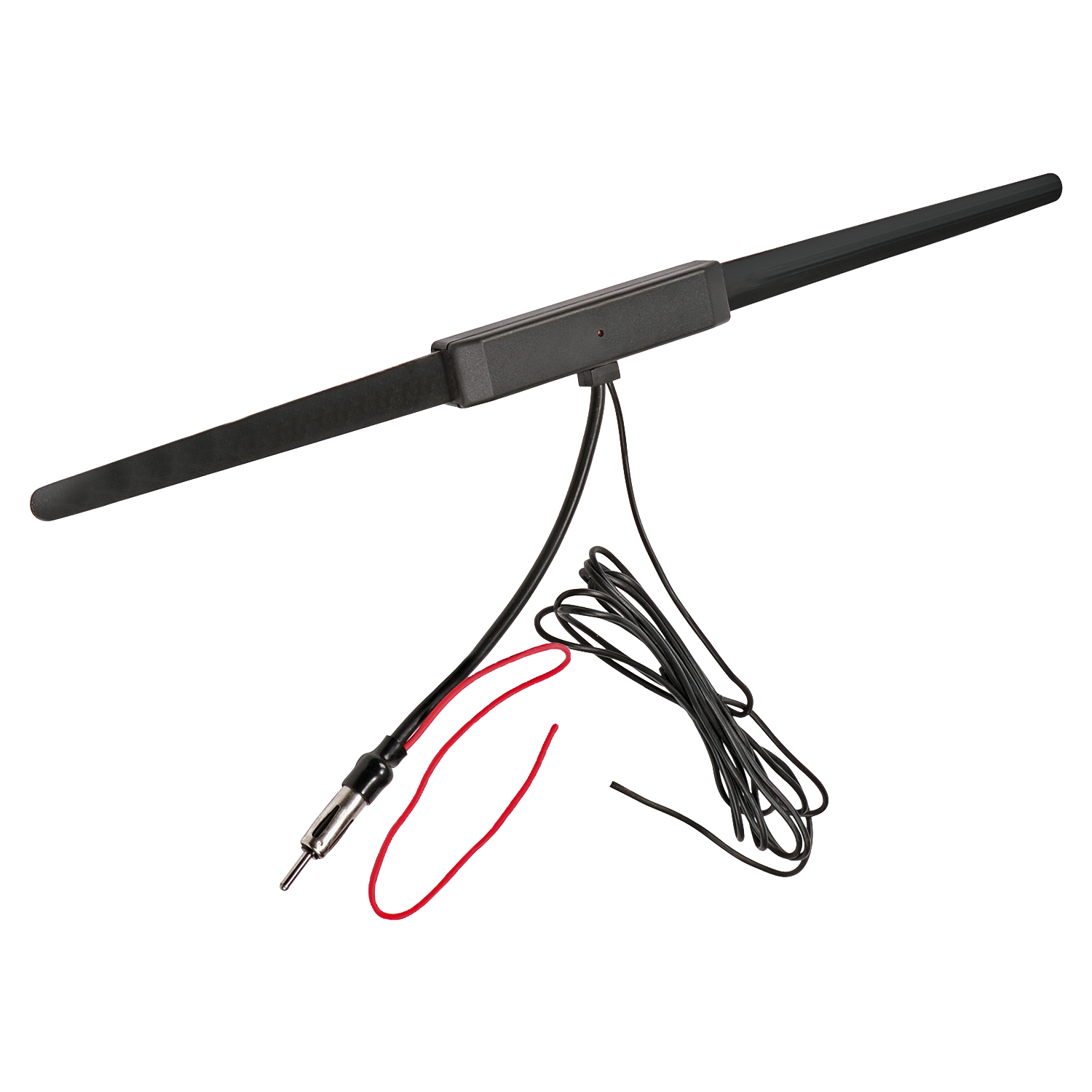

Amplified Stereo Antenna
SWAN150SR
Antenna mounts easily with heavy-duty adhesive foam strips and boosts signals for optimal AM/FM clarity, ideal for areas with variable reception. Includes 7-foot cable.

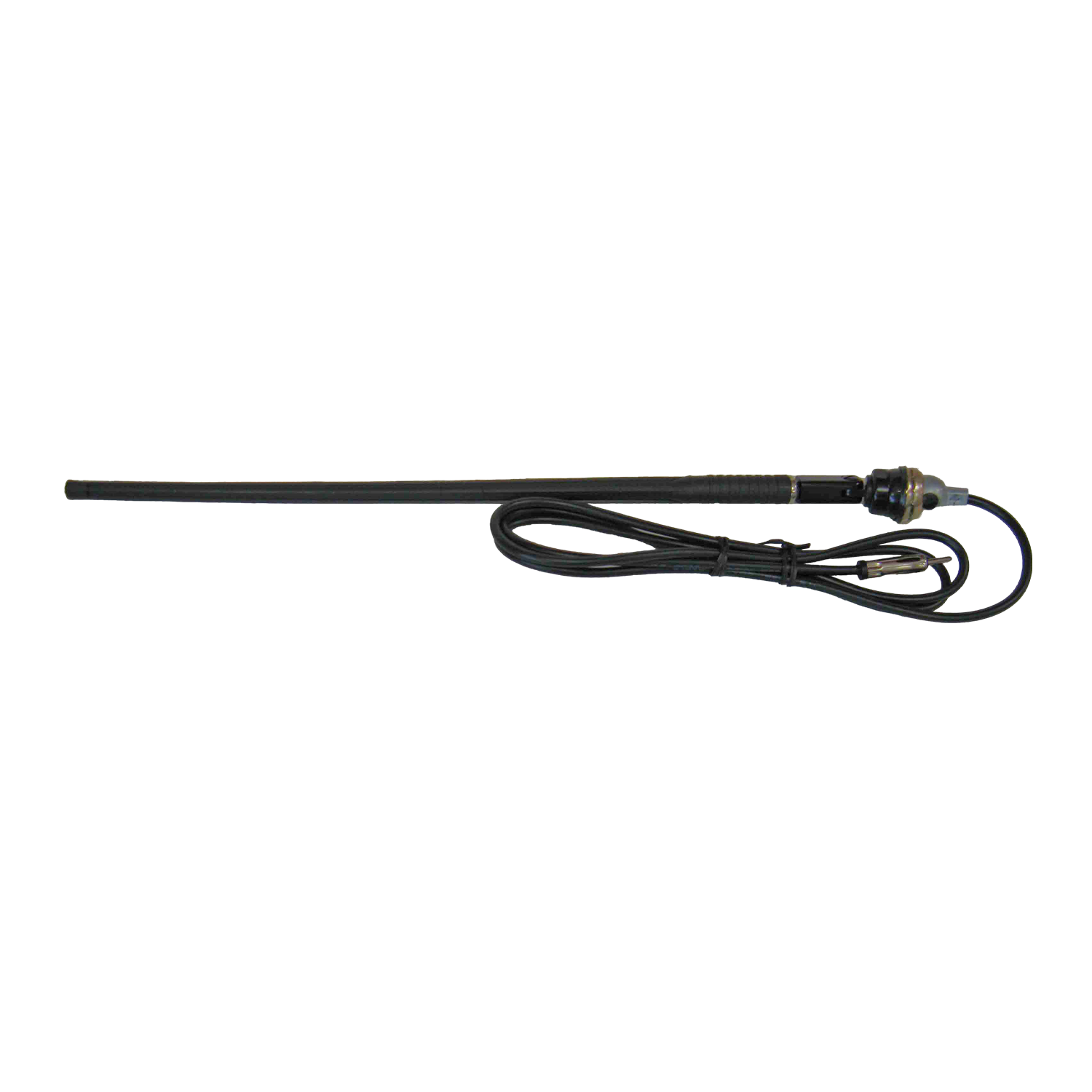

Rubber Mast Antenna
SWJD11
Unlike metal masts, the flexible rubber design prevents breakage, ensuring long-lasting performance. It features a watertight rubber gasket and a versatile mounting base that adjusts 90 degrees for side or top installation.

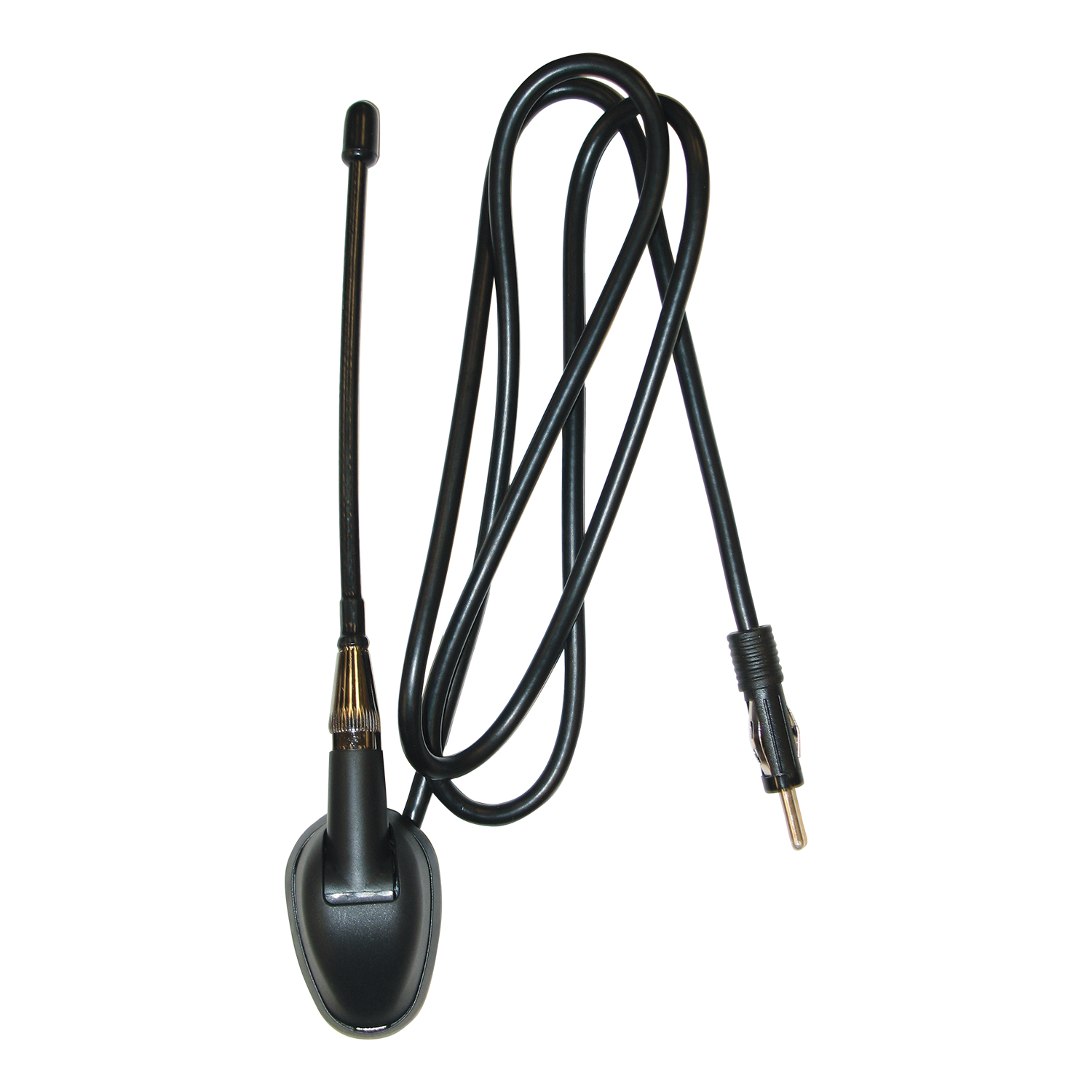

Heavy Duty Antenna
SWJAN139
Upgrade to our heavy-duty antenna featuring a durable 6-inch rubber mast, far more forgiving than metal masts. With the 39-inch cable and a watertight gasket, the adjustable base allows for versatile top or side mounting, ensuring reliable performance in any condition.

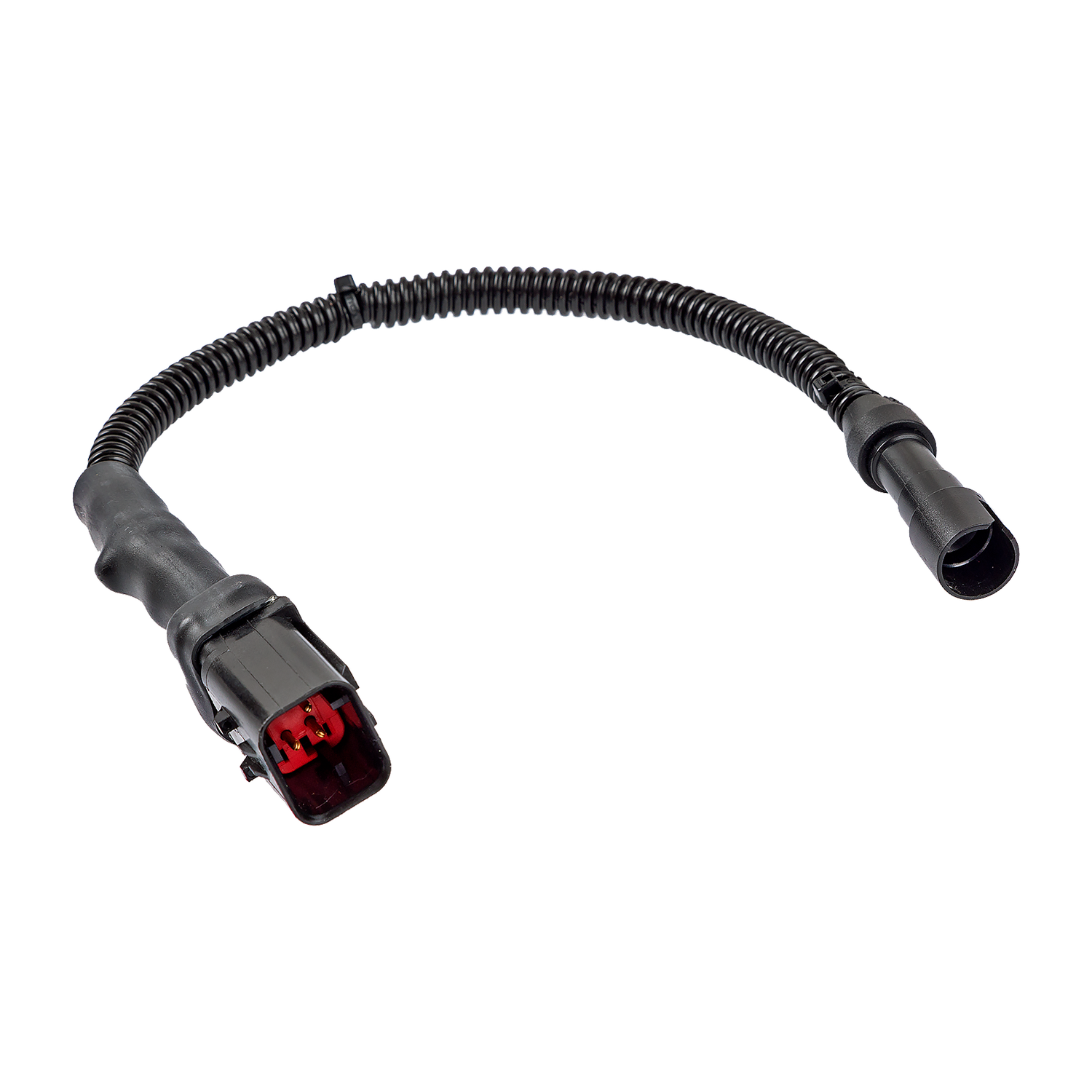

Single Camera Adapter
SWTY26834
This single camera adapter connects a camera to compatible John Deere monitors.

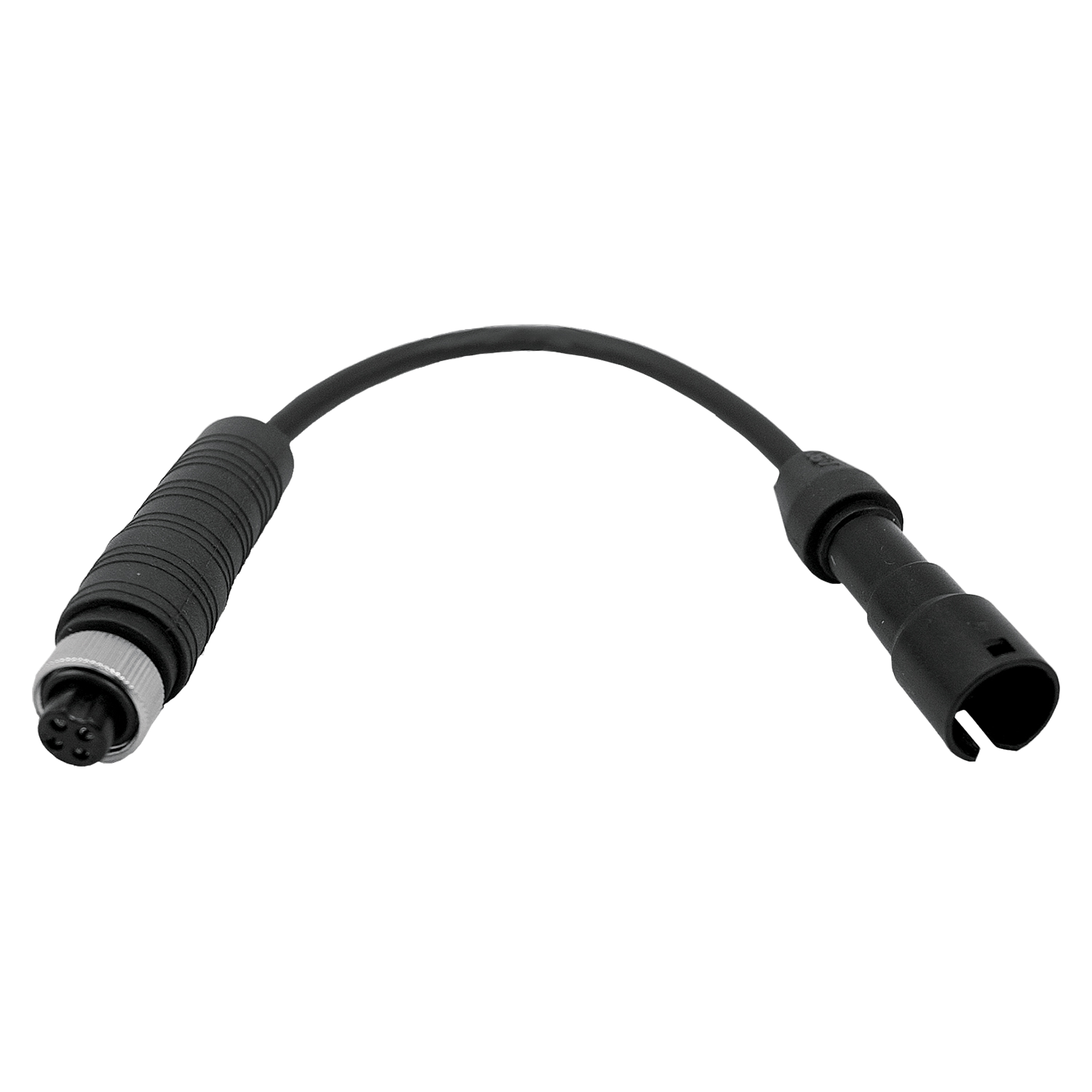

Harness Adapter
SWVOSCCAM
Engineered for durability, this harness adapter connects securely to all CabCam adapters.

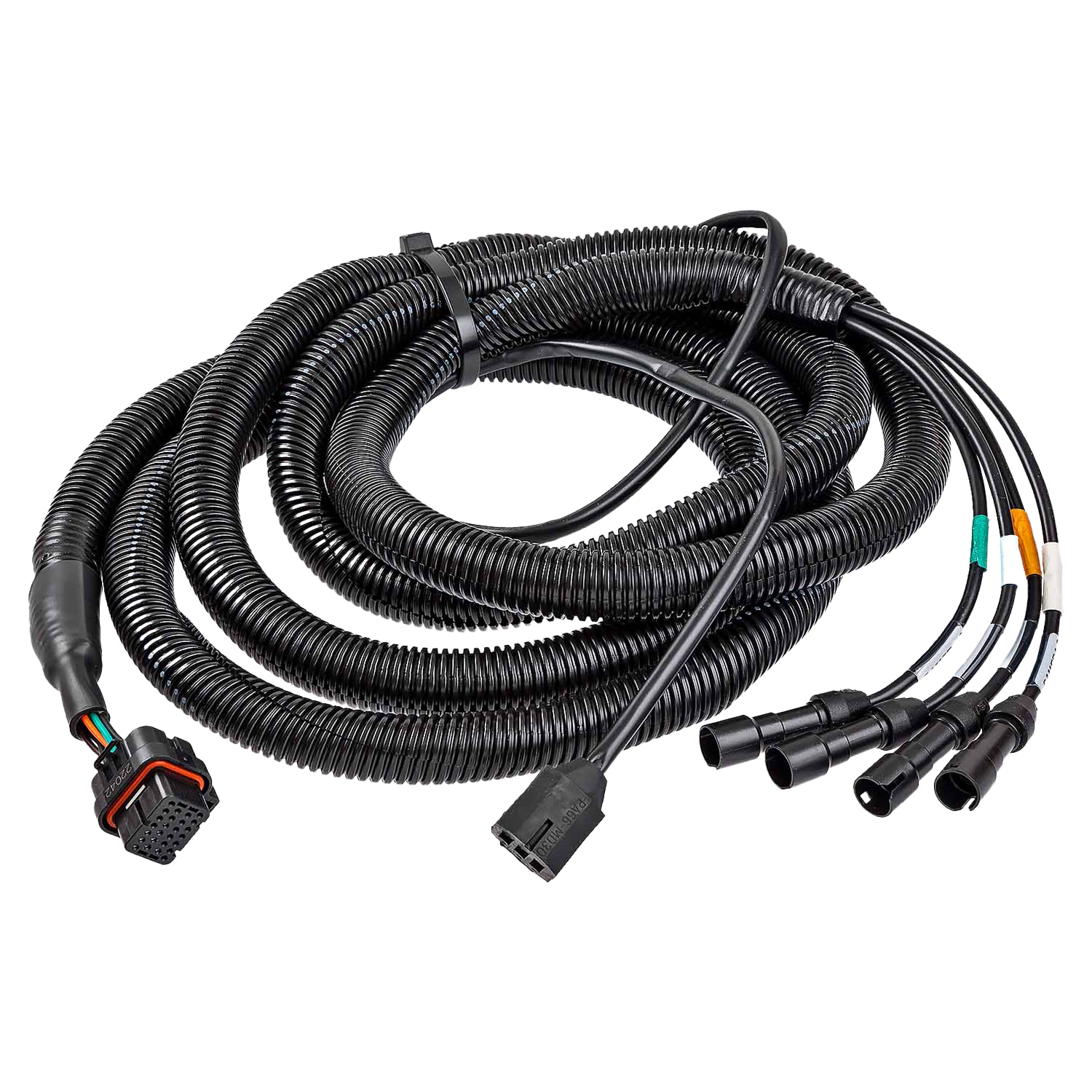

4-Camera Harness Adapter
SW00892
This connects up to four cameras to a 4840 monitor, providing comprehensive, multi-angle viewing for enhanced monitoring and visibility.

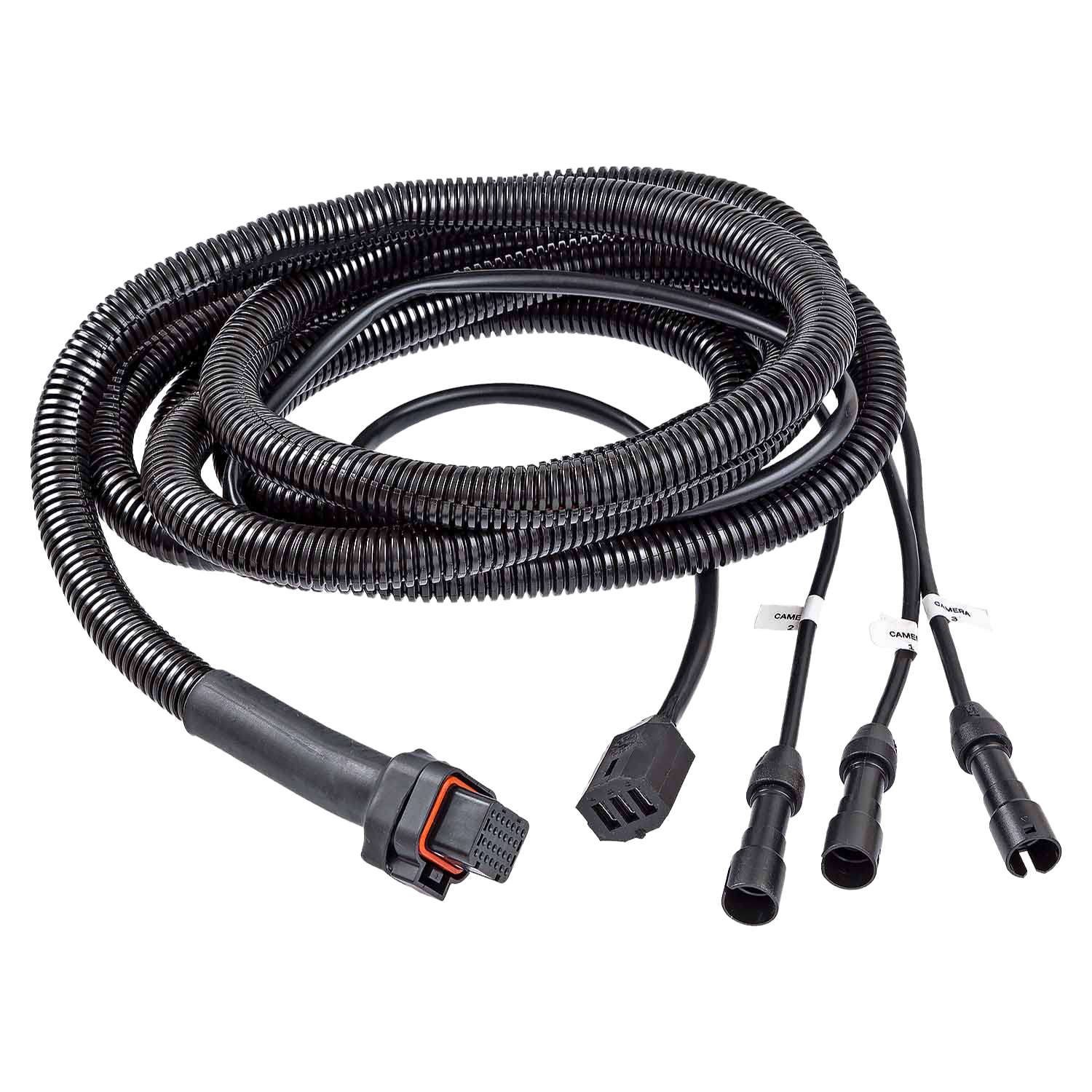

3-Camera Harness Adapter
SW00891
This connects up to three cameras to a GS3 monitor, plugging directly into the back of the monitor for easy installation. It enables clear, multi-angle views to enhance visibility and monitoring.
Get in Touch
© Copyright JENSEN Heavy Duty & Voyager. All Rights Reserved. | Privacy Policy
SWJXHD40
Compact Heavy Duty Sealed Speaker
Product Features
- Max Power Handling: 120 Watts
- RMS Power: 20-40 Watts
- Sensitivity: 82dB
- Frequency: 70Hz – 20kHz
- Nominal Impedance: 4 Ohms
- Polypropylene Woofer: 4″
- Magnet: 4.3 oz.
- Mounting Hole Diameter: 4″
- Mounting Depth: 1.65′
- Tweeter Type: Dome
- Tweeter Material: Mylar cone/Neodymium magnet
SWJHD22
Bluetooth® and Weatherband Stereo
Product Features
- 180 watts max power (45W x 4); 100 watts RMS (25W x 4)
- Bluetooth® streaming audio (A2DP/AVRCP)
- Water and UV resistant front panel (IPX5)
- Weatherband
- AM/FM tuner with 30 presets
- Rear USB port for device charging (one amp output)
- Stereo pre-amp line-level output (2V RMS)
- Amplifier remote trigger (12VDC)
- PA microphone input
- Audio settings (volume/bass/treble/balance/fade)
- Togle switch between day and night display
- Daylight-readable, segmented LCD
- Two-wire power with non-volatile memory and clock support
- Low battery alert
- Work timer
SWJHD62
Bluetooth® Stereo with DAB+
Product Features
- 180 watts max power (45W x4); 100 watts RMS (25W x 4)
- Bluetooth® streaming audio (A2DP/AVRCP) and hands-free calling (HFP) – Compatible with JMICHFP and JMICHFP2 microphones (sold separately)
- Water and UV-resistant front panel (IPX6)
- App control ready
- DAB+ (Digital Audio Broadcasting)
- Weatherband
- AM/FM tuner with 30 presets
- RBDS (Radio Broadcast Data Service) with PTY search
- Rear USB port for device charging (1 amp output)
- Stereo pre-amp line level output (2V RMS)
- Amplifier remote trigger (12VDC)
- Toggle switch between day and night display
- Full dot matrix LCD
- Two-wire power with non-volatile memory and clock support
- Remote turn on
- Low battery alert
- Work timer
- J1939 CAN Bus compatibility *
SWJXHD54 (AM147513)
5.25" Heavy Duty Sealed Speaker
Product Features
- Max Power Handling: 135 Watts
- RMS Power: 20-45 Watts
- Sensitivity: 84dB
- Frequency: 65Hz – 20kHz
- Nominal Impedance: 4 Ohms
- Polypropylene Woofer: 5″
- Magnet: 11 oz.
- Mounting Hole Diameter: 5″
- Mounting Depth: 2.3″
- Tweeter Type: Dome
- Tweeter Materials: Mylar cone/Neodymium magnet
SWUSB42CHD
Dual USB Charger
Product Features
- Marine Panel Mount USB Charger
- (1) USB-C Port
- (1) USB-A Port
- 4.8 Amps Charging Current (2.4Ax2)
- 12V DC Input
- Epoxy-coated PCB for superior protection against water and high durability
- Blue LED Illuminated Face
- Watertight Rubber Cover
- Corrosion Resistant Materials (Meets ASTM D1141)
- UV Resistant Materials (Meets ASTM D4329)
SWJMICHFP
Omnidirectional Microphone
Product Features
- Omnidirectional microphone
- 12-foot cable length
- Locking connector
- Visor clip and 3M adhesive pad included
- Works with all JENSEN Heavy Duty Bluetooth® radios
SWUSBP124A
USB Hub
Product Features
- Waterproof design/construction (IPX5)
- A rubber cover protects female USB 2.0 to prevent foreign object entry into the USB jack
- 124″ long cable
- Female USB terminates to male USB
- Packaged in a full-color gift carton
- Compatible with JDH962BT, JHD922BT, JHD962BTBP, JHD62, JHD22
- UV-resistant finishes/materials (meets ASTMD4329)
- Through-hole mount with threaded housing and knurled securing nut
- Corrosion-resistant materials (meets ASTMB117)
SWJXHD30PS
3” Universal Mount Two-Way Speakers
Product Features
- 60 watts max (30 watts RMS)
- Waterproof bridged woofer/tweeter
- Polypropylene cone
- Ferro fluid cooling on tweeter
- Rubber suspension/surround
- Four-layer ASV voice coil
- U-bracket included
- Rear AMPS mounting pattern for additional mounting options
- Fixed grille
- Corrosion resistant (D1141 – 98)
- UV resistant (ATSM D4329)
Dimensions
4.37″ W x 4.33″ H x 3.11″ D (w/ bracket)
SWJHD962BT
Mini Stereo with DAB+
Product Features
- 50 watts max power (25W x 2); 20 watts RMS (10W x 2)
- Bluetooth® streaming audio (A2DP/AVRCP) and hands-free calling (HFP) – compatible with JMICHFP and JMICHFP2 microphones (sold separately)
- Water and UV-resistant front panel (IPX6)
- App control ready
- DAB+ (Digital Audio Broadcasting)
- Weatherband
- AM/FM tuner with 30 presets
- RBDS (Radio Broadcast Data Service) with PTY search
- Rear USB port for device charging (1 amp output)
- Stereo pre-amp line level output (2V RMS)
- Amplifier remote trigger (12VDC)
- Toggle switch between day and night display
- Full dot matrix LCD
- Two-wire power with non-volatile memory and clock support
- Remote turn on
- Low battery alert
- Work timer
SWJHD922BT
Mini Bluetooth® Stereo
Product Features
- 180 watts max power (45W x 4); 100 watts RMS (25W x 4)
- Bluetooth® streaming audio (A2DP/AVRCP)
- Weatherband
- AM/FM tuner with 30 presets
- Audio settings (volume/bass/treble/balance/fade)
- Toggle switch between day and night display
- Daylight-readable, segmented LCD
- Two-wire power with non-volatile memory and clock support
- Low battery alert
- Work timer
SWJAHD240BT
2-Channel, Bluetooth® Amplifier
Product Features
- 80 watt max power (40 watt RMS)
- Bluetooth® audio (A2DP)
- Waterproof (IPX6)
- 4 Ohm ~ 8 Ohm stable
- Operating voltage: 10 – 18VDC
- Frequency response: 20 Hz – 20 KHz
- Flush mount lighted chrome switch
- Epoxy potted enclosure
- 10 Amp fuse in waterproof holder
- Corrosion resistant (ASTM B117)
- Meets ASTM D4329 UV exposure
SWJAHD240BT
3.5” Heavy Duty Mini Speakers
Product Features
- Max Power Handling: 30 Watts
- RMS Power Range: 15 Watts
- 3.5″ polypropylene woofer
- Frequency: 80Hz-20kHz
- Nominal Impedance: 4 Ohms
- Magnet: 2 oz.
- Tweeter Type: Dome
- Tweeter Material: Mylar
- Surface, flush, or bracket mounting options
- Corrosion-resistant finishes/materials (ASTM B117)
- UV-resistant finishes/materials (ASTM D4329)
Dimensions w/ Bracket
SWVCMS24B
Color CMOS Camera
Product Features
- High performance color optics
- Black powder-coated aluminum housing
- 1/4″ CMOS sensor
- Electronic automatic iris
- User selectable normal/mirror image orientation via switch
- 10 LEDs for IR low light assistance
- Built-in microphone
- IP69K waterproof rating
- Corrosion Resistant (ASTM-B117)
SWVCMS172B
Rear Observation Camera with CMOS Sensor
Product Features
- Waterproof (IP69K)
- 12VDC power
- Image Orientation: mirror (reversed)
- Excellent low-light and bright daylight optics
- 12 IR LEDs
- Microphone
Dimensions
SWVOM719WP
Heavy Duty QuadView 7” Monitor
Product Features
- Engineered for heavy-duty, commercial use
- 7″ digital wide format color TFT LCD panel
- Single image, split-screen, or QuadView viewing modes
- Four camera inputs and six triggers
- DC auto source for switching triggers (turn signal compatible)
- Waterproof housing (IPX6)
- Backlit control buttons
- Built-in audio speaker
- AMPS mounting provisions
- Manual/auto day/night display brightness control
- CE, FCC, e-Mark certified
SWVOM718
Observation 7" Monitor
Product Features
- 7″ wide-view LCD panel
- Energy-efficient, white LED illumination
- Back-lit controls
- Three camera (A/V) inputs
- NTSC and PAL video signal compatible
- Manual (pushbutton) or automatic (trigger) source selection
- Turn-signal (pulsed DC) compatible trigger inputs (AV2, AV3)
- Auto power ON (standby)
- On-Screen Display (OSD) for AV source, picture adjustment, and volume level
- Day/Night brightness modes
- Non-volatile memory for picture and volume adjustment settings
- Multiple mounting options (AMPS compatible)
- Removable sun-visor included
- Speaker
SWVOM43HD
4.3" Observation Monitor
Product Features
- Three camera capability
- IPX6 rating
- Bright 4.3″ TFT LCD display with anti-glare/scratch protective lens
- Display graphic overlay shows real-time distance from objects
- Built-in speaker
- Manual or automatic source selection
- Turn-signal trigger inputs
- Screen saver mode
- e-Mark certified
SWVOM1023
10” Heavy Duty Observation Monitor
Product Features
- Wide-format color LCD display with single, split, or quad views
- Certified for durability (CE, FCC, e-Mark) and withstands 4G vibration
- IPX6 waterproof rating
- Supports CVBS (NTSC) or AHD video inputs
- 4Camera inputs & 6 triggers
SWVOM43HDCL1B
Heavy Duty Observation System
Monitor Features
- Three-camera capability
- Waterproof (IPX6)
- 4.3″ LCD display with anti-glare/scratch protective lens
- Graphic overlay shows real-time distance from objects
- Built-in speaker
- Manual or automatic source selection
- Turn-signal trigger inputs
- Screen-saver mode
- e-Mark certified
Camera Features
- Waterproof (IP69K)
- 12VDC power
- Image Orientation: mirror (reversed)
- Excellent low and bright light performance
- 12 IR LEDs
- Microphone
System Includes: 15′ camera cable (CEC15) and 4″ monitor mount (VOSHD4MNT)
SWVOS7MDCL1B
Voyager ToughCam Single-Camera Observation Kit
Monitor Features
- 7″ wide-view LCD panel
- Energy-efficient, white LED illumination
- Back-lit controls
- Three camera (A/V) inputs
- NTSC and PAL video signal compatible
- Manual (pushbutton) or automatic (trigger) source selection
- Turn-signal (pulsed DC) compatible trigger inputs (AV2, AV3)
- Auto power ON (standby)
- On-Screen Display (OSD) for AV source, picture adjustment and volume level
- Day/Night brightness modes
- Non-volatile memory for picture and volume adjustment settings
- Multiple mounting options (AMPS compatible)
- Removable sun-visor included
- Speaker
Camera Features
- Waterproof (IP69K)
- 12VDC power
- Image Orientation: mirror (reversed)
- Excellent low-light and bright daylight optics
- 12 IR LEDs
- Microphone
SWVOS7MDCL2B
Voyager ToughCam Two-Camera Observation Kit
Monitor Features
- 7″ wide-view LCD panel
- Energy-efficient, white LED illumination
- Back-lit controls
- Three camera (A/V) inputs
- NTSC and PAL video signal compatible
- Manual (pushbutton) or automatic (trigger) source selection
- Turn-signal (pulsed DC) compatible trigger inputs (AV2, AV3)
- Auto power ON (standby)
- On-Screen Display (OSD) for AV source, picture adjustment and volume level
- Day/Night brightness modes
- Non-volatile memory for picture and volume adjustment settings
- Multiple mounting options (AMPS compatible)
- Removable sun-visor included
- Speaker
Camera Features
- Waterproof (IP69K)
- 12VDC power
- Image Orientation: mirror (reversed)
- Excellent low-light and bright daylight optics
- 12 IR LEDs
- Microphone
SWVOSHDCL1
Heavy Duty Single-Camera Observation Kit
Monitor Features (VOM719WP)
- Engineered for heavy-duty, commercial use
- 7″ digital wide format color TFT LCD panel
- Single-image, split-screen, or QuadView viewing modes
- Four camera inputs and six triggers
- DC auto source for switching triggers (turn signal compatible)
- Waterproof housing (IPX6)
- Backlit control buttons
- Built-in audio speaker
- AMPS mounting provisions
- Manual/auto day/night display brightness control
- CE, FCC, e-Mark certified
Camera Features (VCMS24B)
- High-performance color optics
- Black powder-coated aluminum housing
- 1/4-inch CMOS sensor
- Electronic automatic iris
- User selectable normal/mirror image orientation via switch
- 10 LEDs for IR low light assistance
- Built-in microphone
- IP69K waterproof rating
- Corrosion Resistant (ASTM-B117)
SWVCMS24B
Color CMOS Camera
Product Features
- High performance color optics
- Black powder-coated aluminum housing
- 1/4″ CMOS sensor
- Electronic automatic iris
- User selectable normal/mirror image orientation via switch
- 10 LEDs for IR low light assistance
- Built-in microphone
- IP69K waterproof rating
- Corrosion Resistant (ASTM-B117)
SWVCMS172B
Rear Observation Camera with CMOS Sensor
Product Features
- Waterproof (IP69K)
- 12VDC power
- Image Orientation: mirror (reversed)
- Excellent low-light and bright daylight optics
- 12 IR LEDs
- Microphone
Dimensions
SWWVSXC150
Digital Wireless Camera
Product Features
- Compatible with WiSight 2.0 monitors* (WVSXM43 or WVSXM70)
- 12V DC universal power connection
- High-performance color optics
- CMOS sensor technology
- IR LED Low-light assist
- Waterproof design and construction
- Integrated microphone
* Not compatible with first-generation WiSight Technology products
SWWVSXM70
Digital Wireless Monitor
Product Features
- 7″ display
- Supports up to four wireless cameras simultaneously * (WVSXC150 or WVSXC160)
- Auto-pairing capability allows the monitor to be paired with any of the wireless cameras with the touch of a button
- Strong signal transmits through and around objects up to 60 feet away
- Supports normal and mirrored camera image
- Supports Single, Split, and Quadview viewing options
- Built-in speaker
- Suction cup mount and 12V DC plug included
* Not compatible with first generation WiSight Technology cameras
SWWVOS2TX
Short-Range WiFi Transmitter
Product Features
- App Ready – The Voyager Vision app turns your smart device into a camera monitor
- Device will transmit 2-way split video over Wi-Fi with a 100-meter range
- App supports Pinch/Zoom/Normal/Mirror, and Optional user adjustable marker OSD lines, and snap shot image
- Up to 2 cameras at a time
- Designed for low-speed maneuvering, stationary observation, and surveillance
- Compatible with all Voyager wired cameras (sold separately)
- IP67 waterproof construction
- Compact size allows for mounting on any part of the trailer
- No secondary monitors to keep track of
- Any tow vehicle can haul any trailer and be connected
- 12 VDC power
- ASTM D1141 compliant
- FCC compliant
SWAN150SR
Amplified Stereo Antenna
Product Features
- Amplifier AM/FM antenna
- Mounts easily sing adhesive foam strips
- Built for heavy-duty applications
Dimensions
Voyager AIO
An All-In-One Safety Solution

Voyager AIO Module

Blind Spot Detection – one of many features of Voyager AIO.
- Full 360-Degree View: Provides a clear, stitched-together view of your surroundings, including a rear camera view, with helpful graphic overlays for better navigation.
- Built-In Microphone Support: Includes audio capability for the rear camera, so you can hear what’s happening behind you.
- CAN Bus Compatibility: Seamlessly integrates with your vehicle’s safety systems to keep everything running smoothly.
- GPS Integration: Tracks your location and shares data through the CAN system.
- Easy Updates: Supports software updates with a simple USB flash drive.
- Powerful Processing: Runs on an advanced quad-core processor with 3D graphics capability for fast and smooth performance.
- Dual Operating System: Built with Linux and FreeRTOS to deliver reliable and efficient operation.
- High-Quality Camera Input: Handles four 720P cameras at 30 frames per second for sharp, real-time visuals.
- Automatic Calibration: Automatically adjusts and stitches together the four camera feeds for a seamless 360-degree view.
Voyager 360
360° Observation System with Auto-Calibration

Voyager 360 module with cameras.

Voyager 10″ monitor (sold separately) displaying the 360° Observation System.
- Auto-calibrate the images from four cameras to create a 360° image
- Supports four vehicle configurations:
- Walk-in Van | 354″ L x 118″ W
- Bus | 551″ L x 118″ W
- Heavy Duty Vehicles | 236″ L x 354″ W
- Semi Trailer | 630″ L x 118″ W
- Left / Right / Rear trigger function to switch between viewing angles
- Update software and vehicle image via USB
- 1/3-inch high-performance color optic cameras
- Waterproof housing
- Plastic camera housing with stainless steel mounting bracket and aluminum
- Powder coated camera cover
